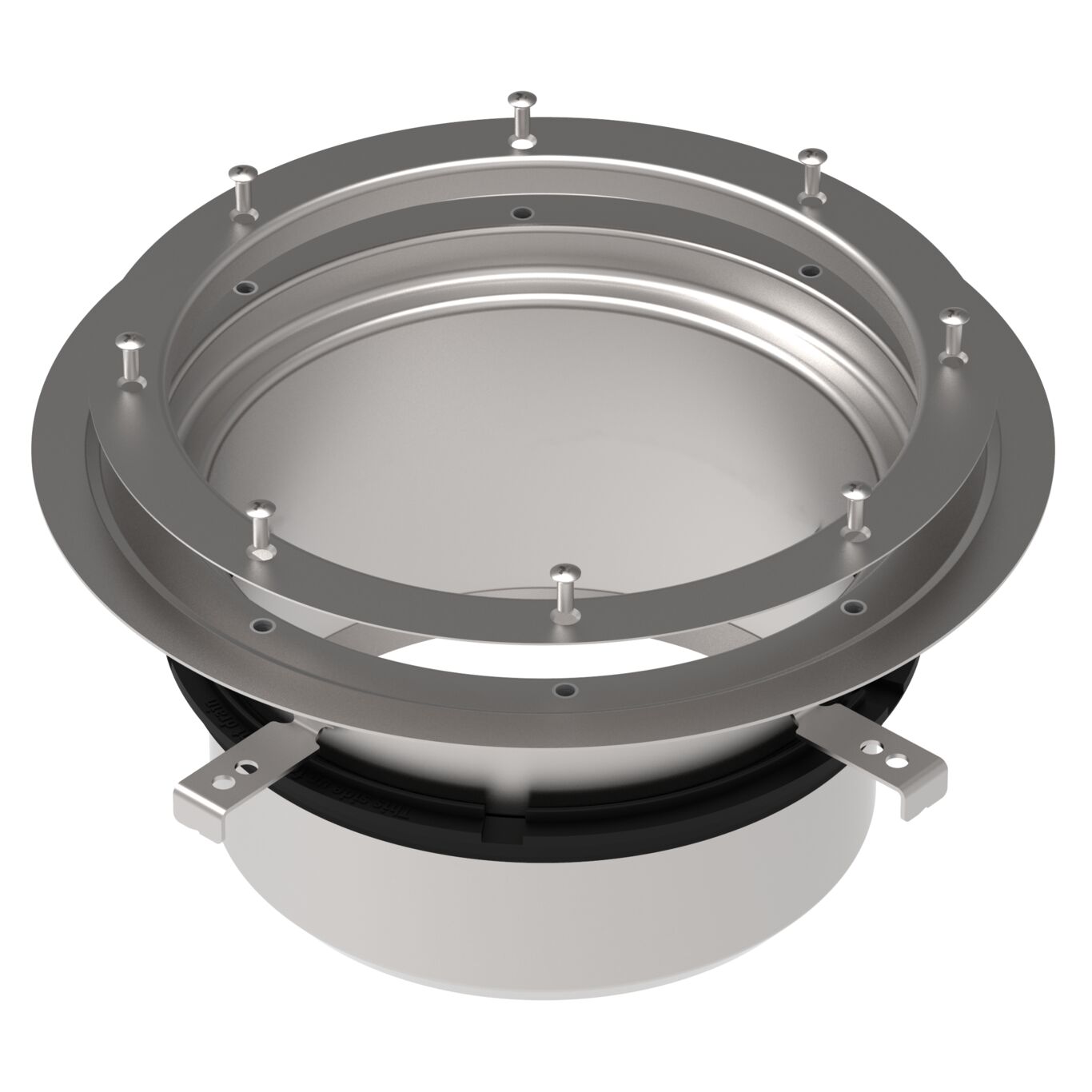

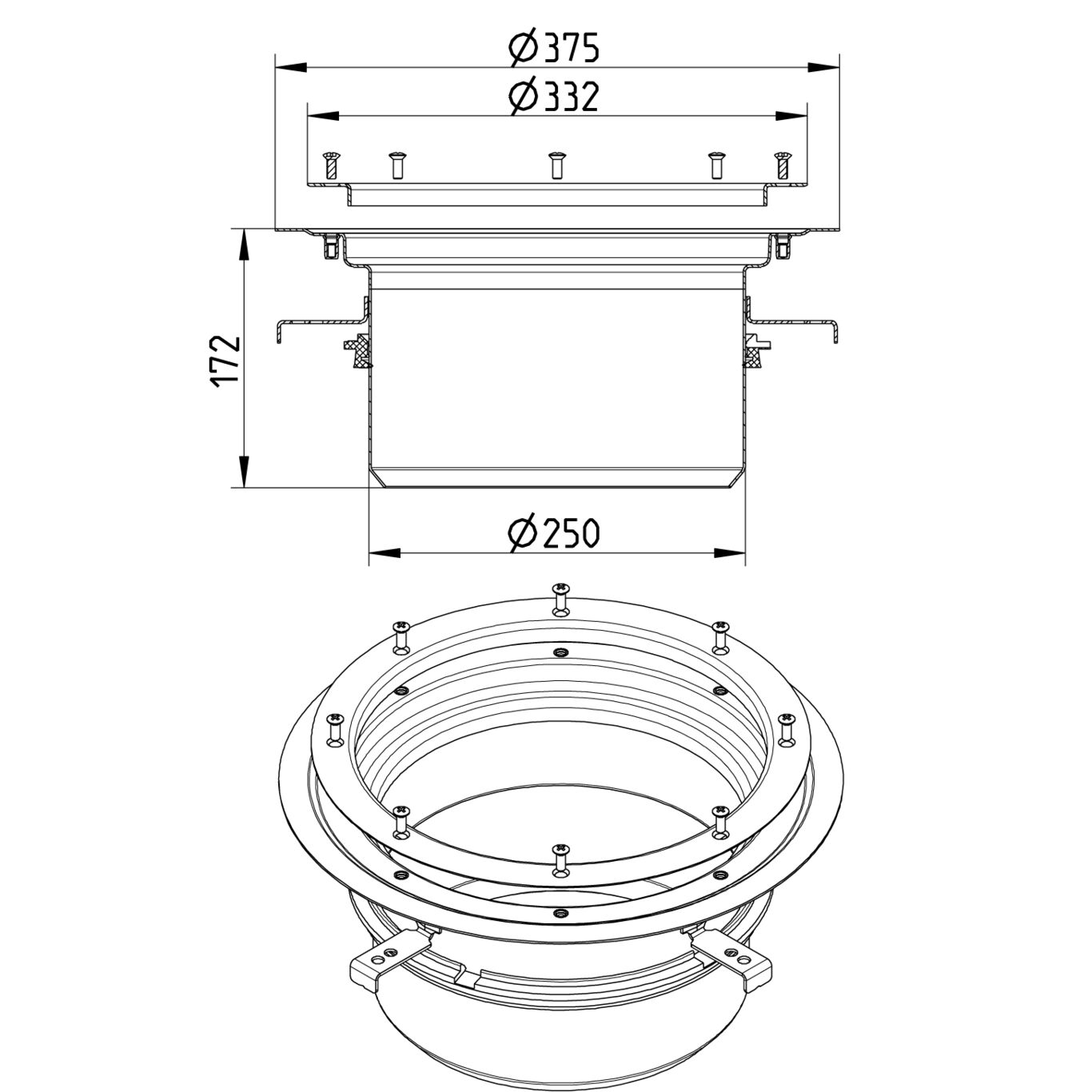

UPPER PART - (774.603.000)
×
![]()
Part Of the Series: Upper part-Vinyl-332
Type no.: 774.603.000
EAN no.: 5705499112511
LVI no.: 3303848
Size: Ø332
UPPER PART
-Floor: vinyl
-Frame: Ø332mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field Of Application | Industrial |
| Floor | Vinyl |
| GWP total Co2 eq. for A1-A3 per product | 21,76kg |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 172 |
| Holes for screws in drains | 0 |
| Outlet Diameter ('') | 10 |
| Outlet Diameter (mm) | 250 |
| Shape of frame | Round |
| Size of Frame (inch) | Ø13⅛ |
| Size of frame (mm) | Ø332 |
| Weight (kg) | 3,67 |
| Weight (lbs) | 8,09 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
