INTERMEDIATE SECTION WITH MEMBANE FLANGE - (777.003.000)
×
![]()
Part Of the Series: Intermediate section
Type no.: 777.003.000
EAN no.: 5705499112955
LVI no.: 3303867

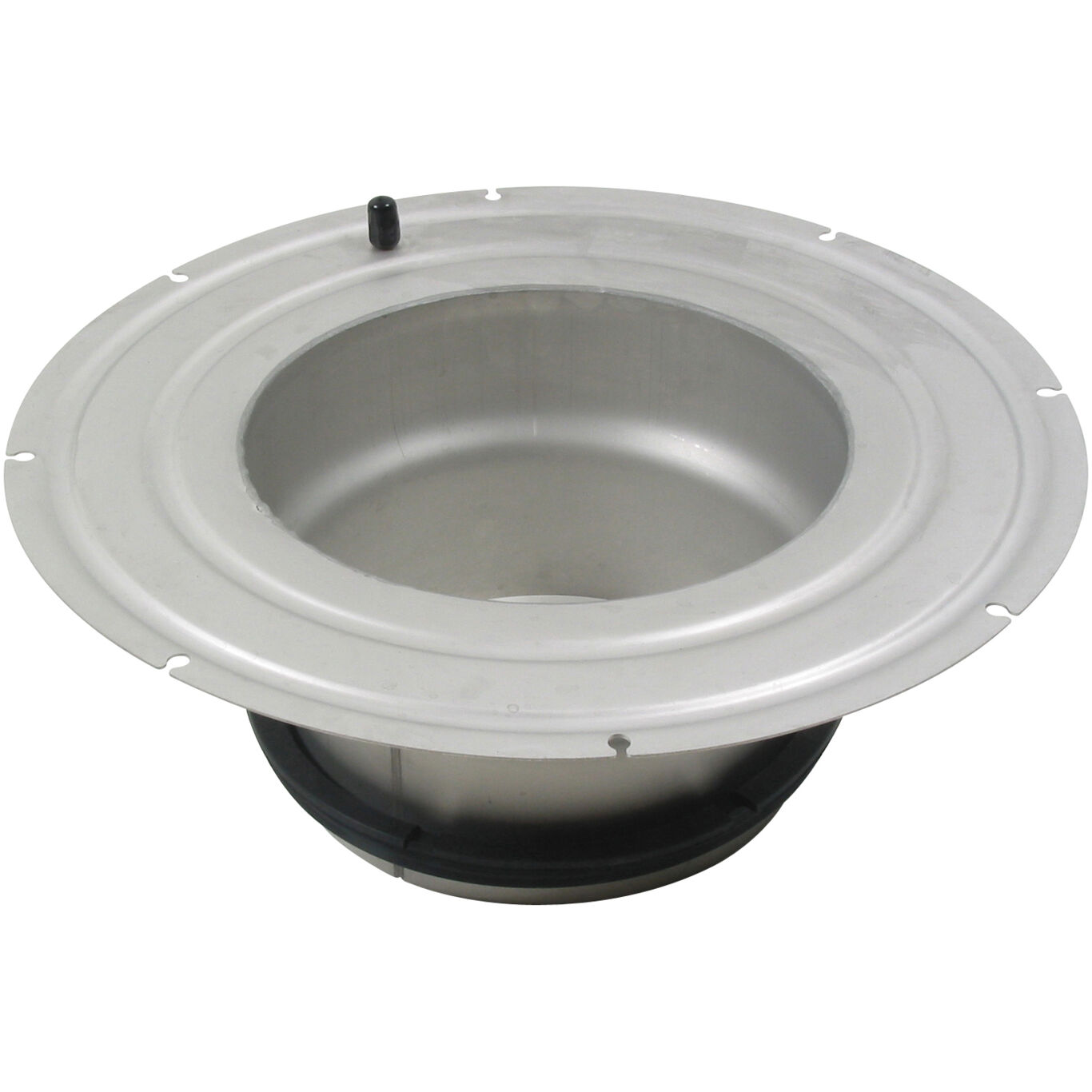

INTERMEDIATE SECTION WITH MEMBANE FLANGE
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| GWP total Co2 eq. for A1-A3 per product | 29,89kg |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |

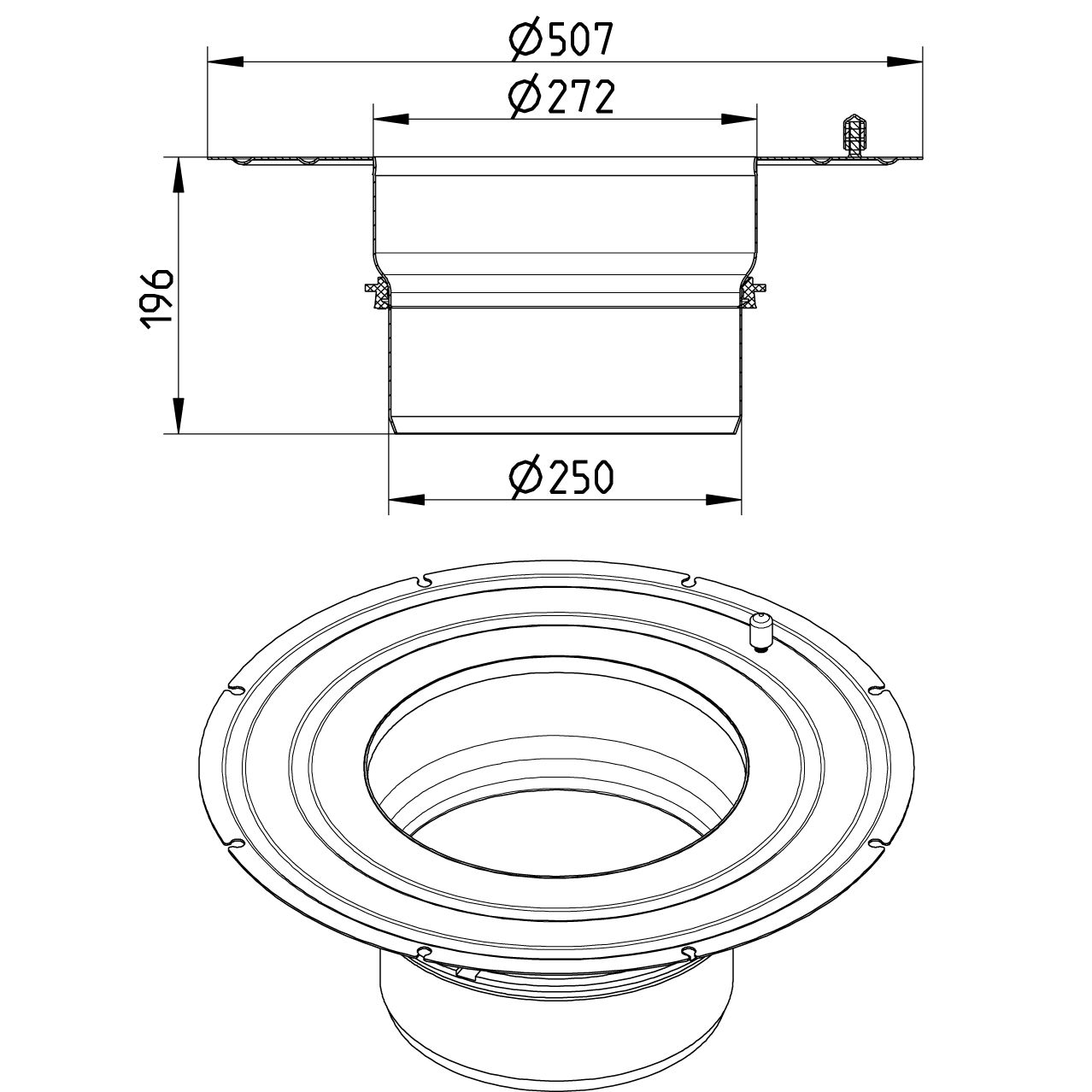

| Minimum Height (mm) | 196 |
| Outlet dia. (Inch) | 10 |
| Outlet Diameter (mm) | 250 |
| Weight (kg) | 5,04 |
| Weight (lbs) | 11,11 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
