BLANK PLATE CIRCLE - (790.273.000.00)
×
![]()
Part Of the Series: Grating-Drain-305-Vinyl-332
Type no.: 790.273.000.00
EAN no.: 5705499121223
Size: Ø295

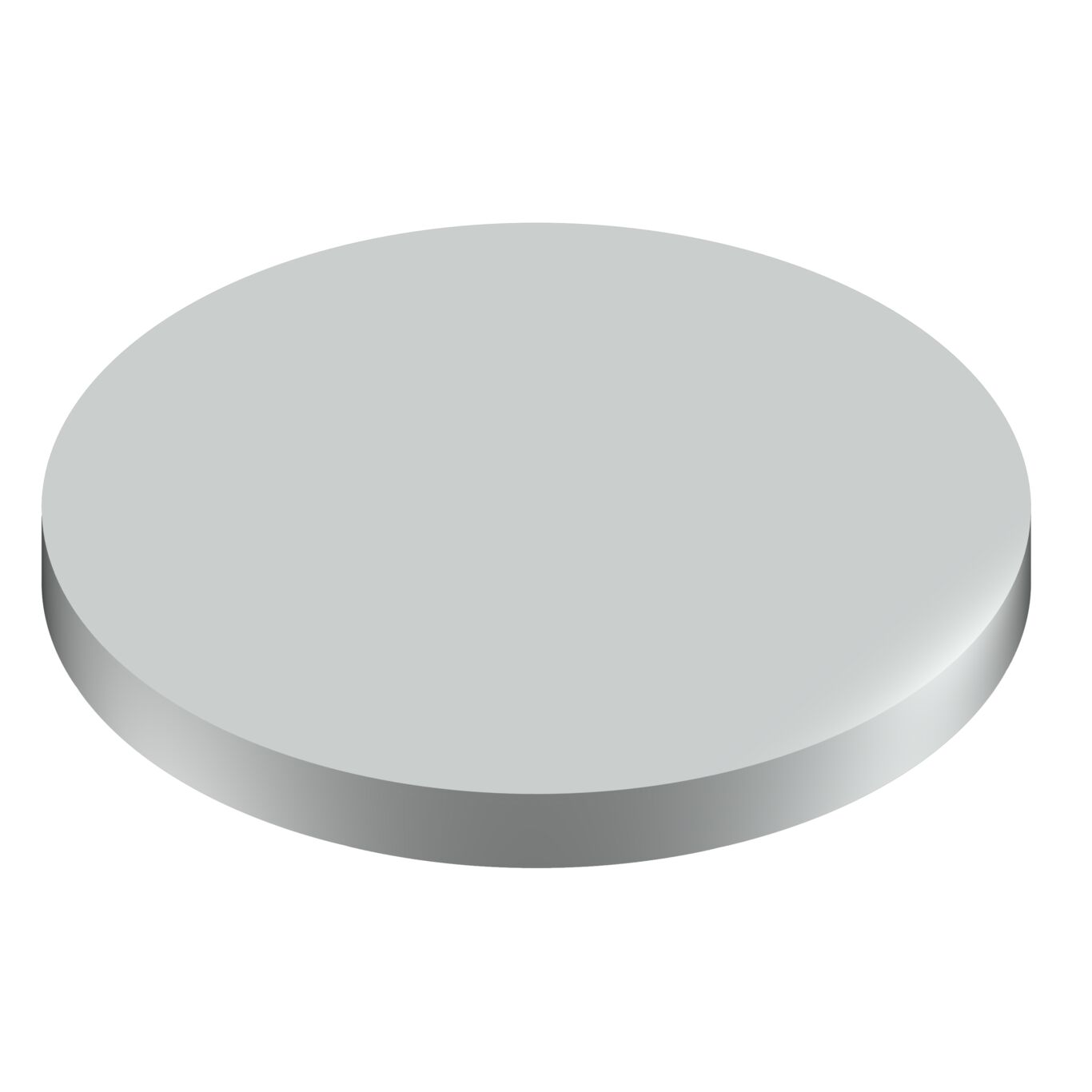

BLANK PLATE CIRCLE

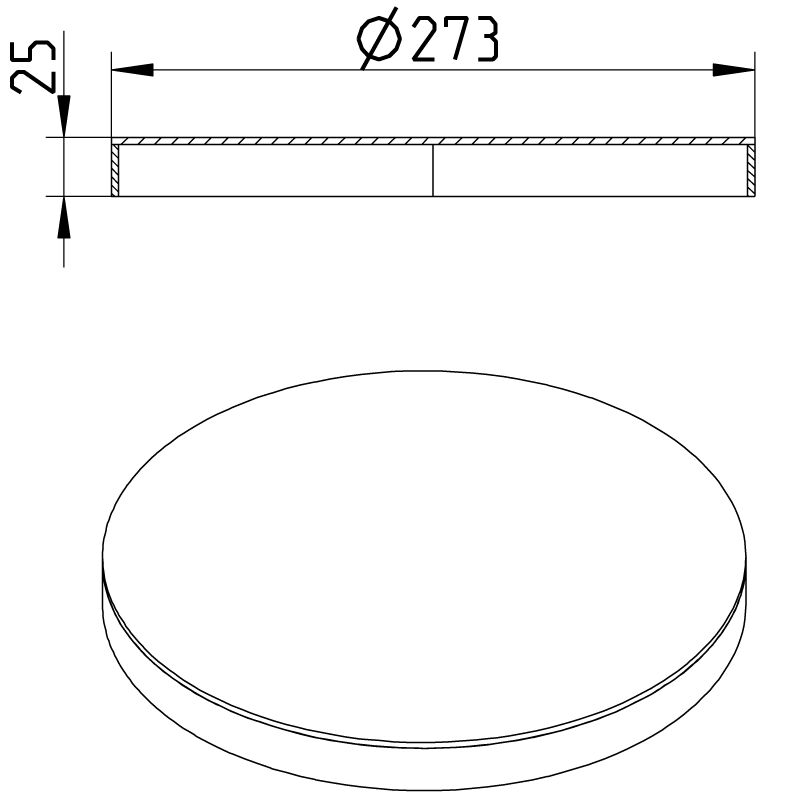

-Grating: Ø273mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field Of Application | Industrial |
| GWP total Co2 eq. for A1-A3 per product | 30,54kg |
| Load class EN1253 | L15 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Holes for screws in other products | 0 |
| Shape of frame | Round |
| Size of Frame (inch) | Ø11⅝ |
| Size of frame (mm) | Ø295 |
| Weight (kg) | 5,15 |
| Weight (lbs) | 11,35 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
