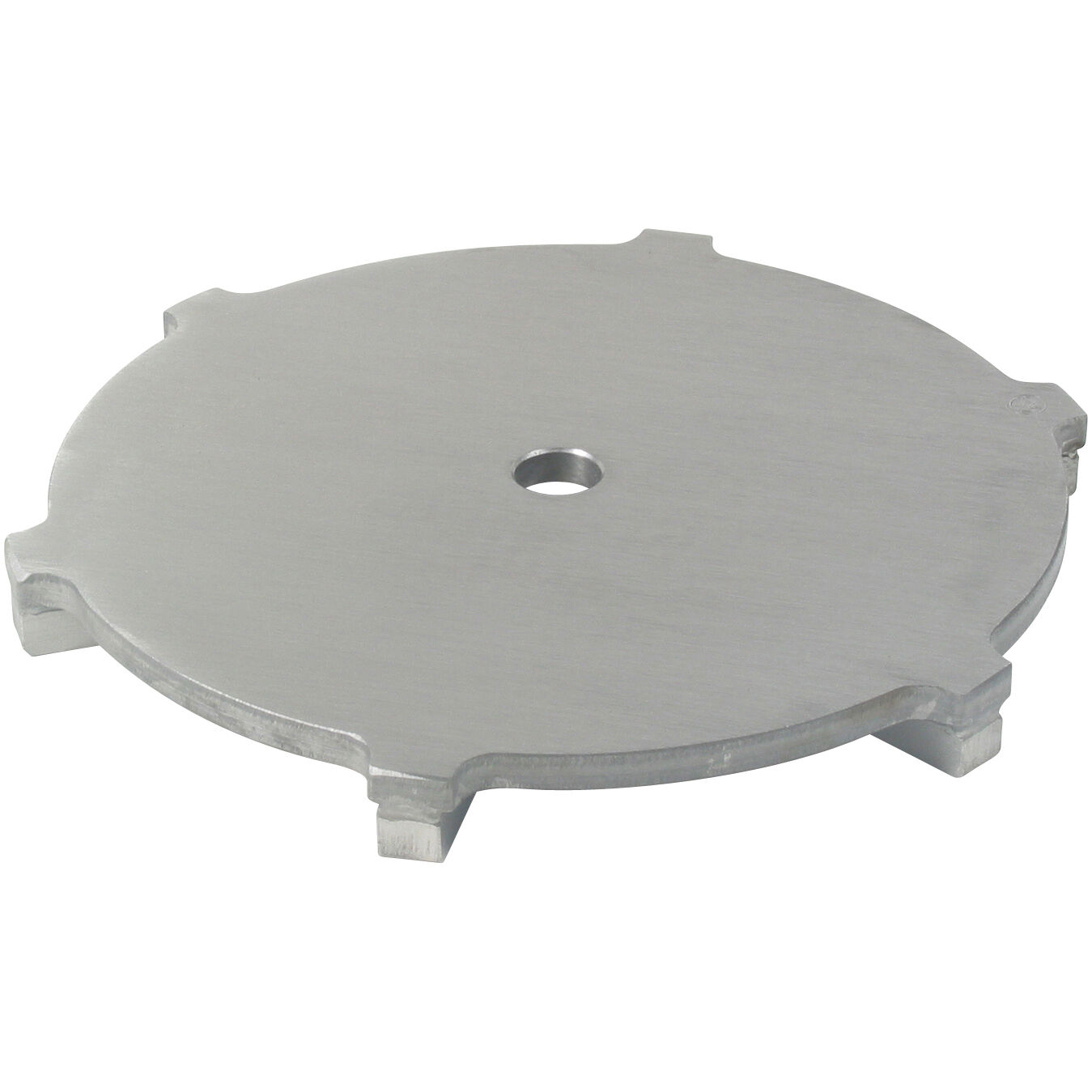

SLOT GRATING CIRCLE - (790.273.000.10 S)
×
![]()
Part Of the Series: Grating-Drain-305-Vinyl-332
Type no.: 790.273.000.10 S
EAN no.: 5705499106862
VVS no.: 153559120
RSK no.: 7123461
NRF no.: 3395166
Size: Ø295
SLOT GRATING CIRCLE
-Grating: Ø273mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field Of Application | Industrial |
| Load class EN1253 | M125 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 25 |
| Non Slip | R10 |
| Holes for screws in other products | 0 |
| Shape of frame | Round |
| Size of Frame (inch) | Ø11⅝ |
| Size of frame (mm) | Ø295 |
| Weight (kg) | 4,90 |
| Weight (lbs) | 10,8 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
