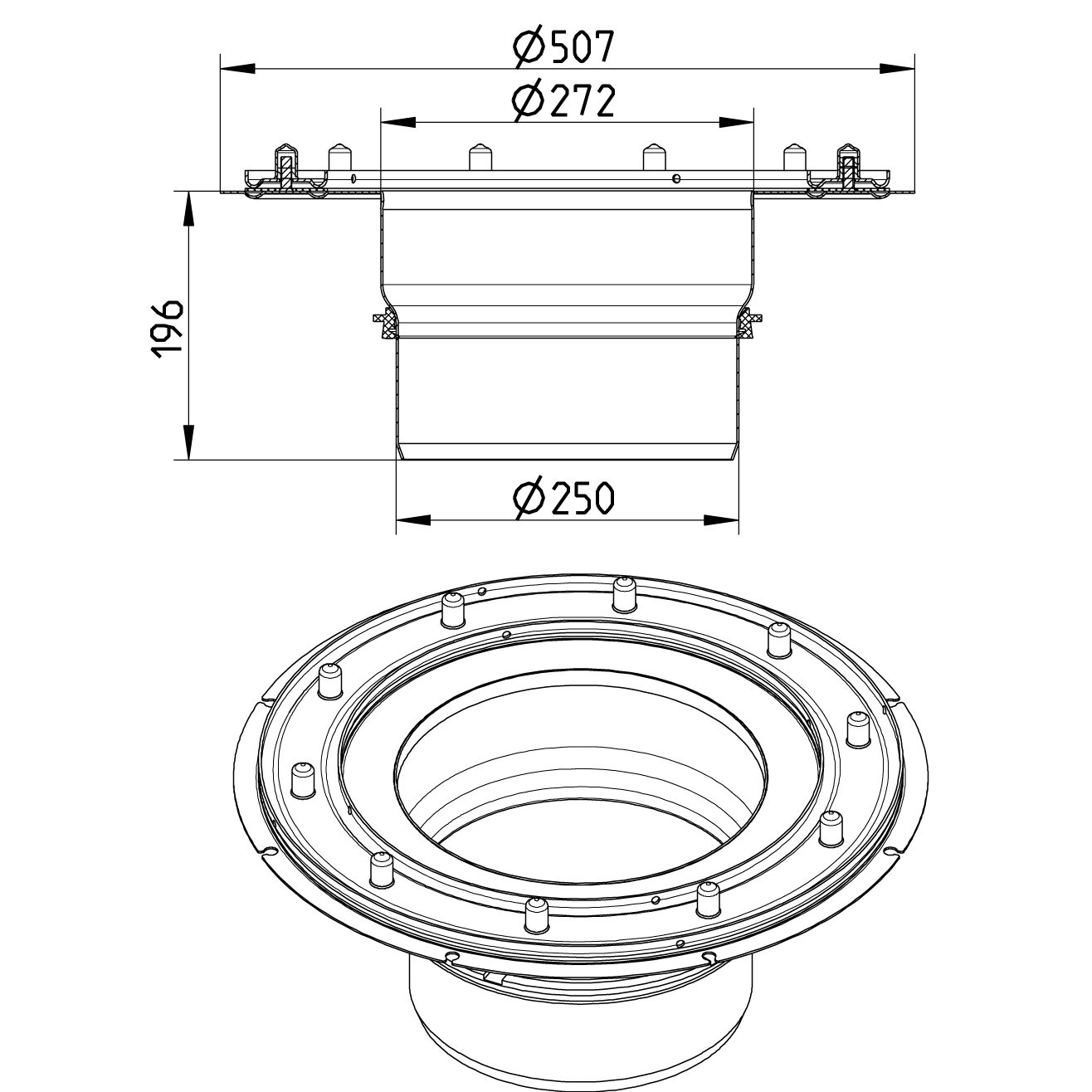

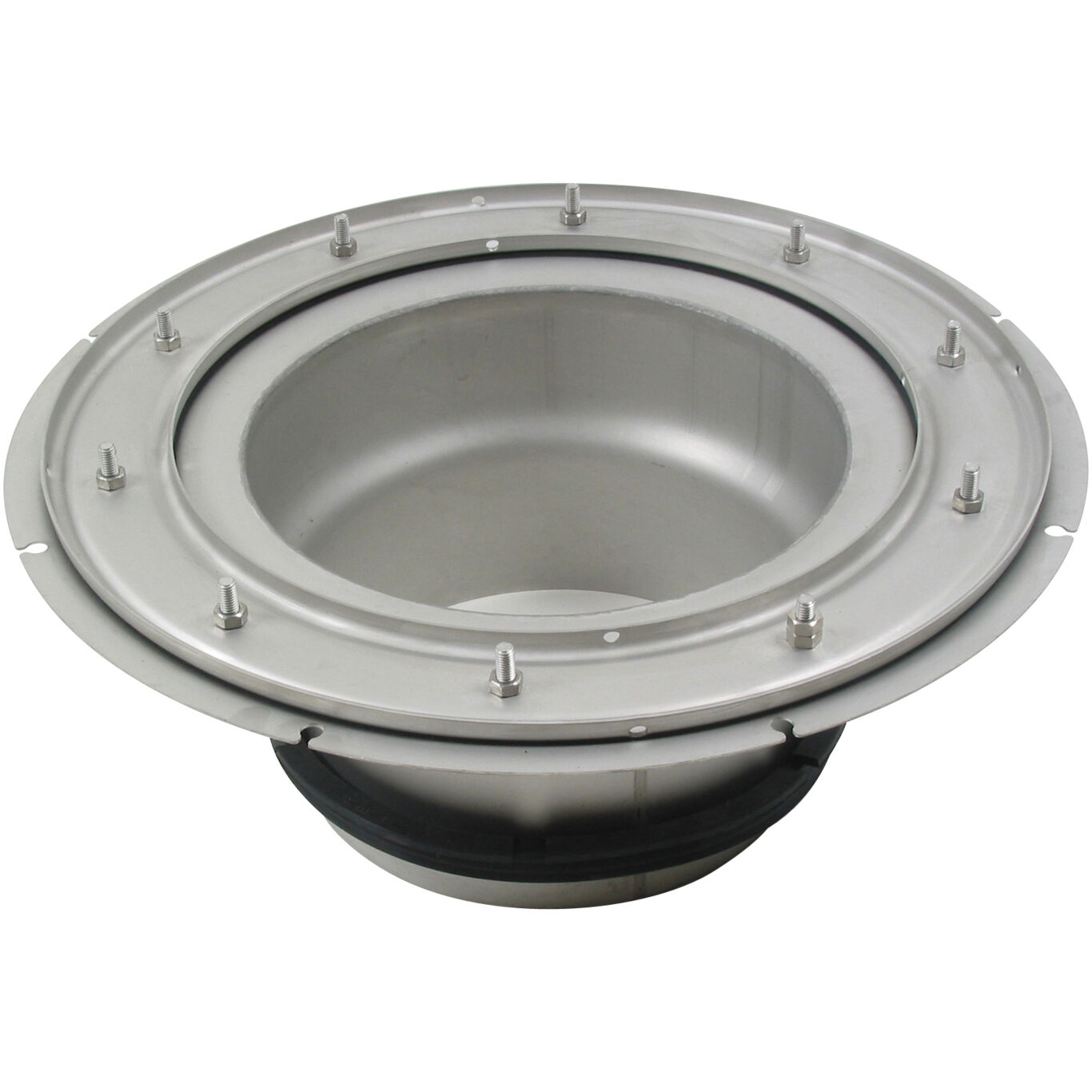

INTERMEDIATE SECTION WITH CLAMPING FLANGE - (779.003.000)
×
![]()
Part Of the Series: Intermediate section
Type no.: 779.003.000
EAN no.: 5705499113150
INTERMEDIATE SECTION WITH CLAMPING FLANGE
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| GWP total Co2 eq. for A1-A3 per product | 41,75kg |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 196 |
| Outlet dia. (Inch) | 10 |
| Outlet Diameter (mm) | 250 |
| Weight (kg) | 7,04 |
| Weight (lbs) | 15,52 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
