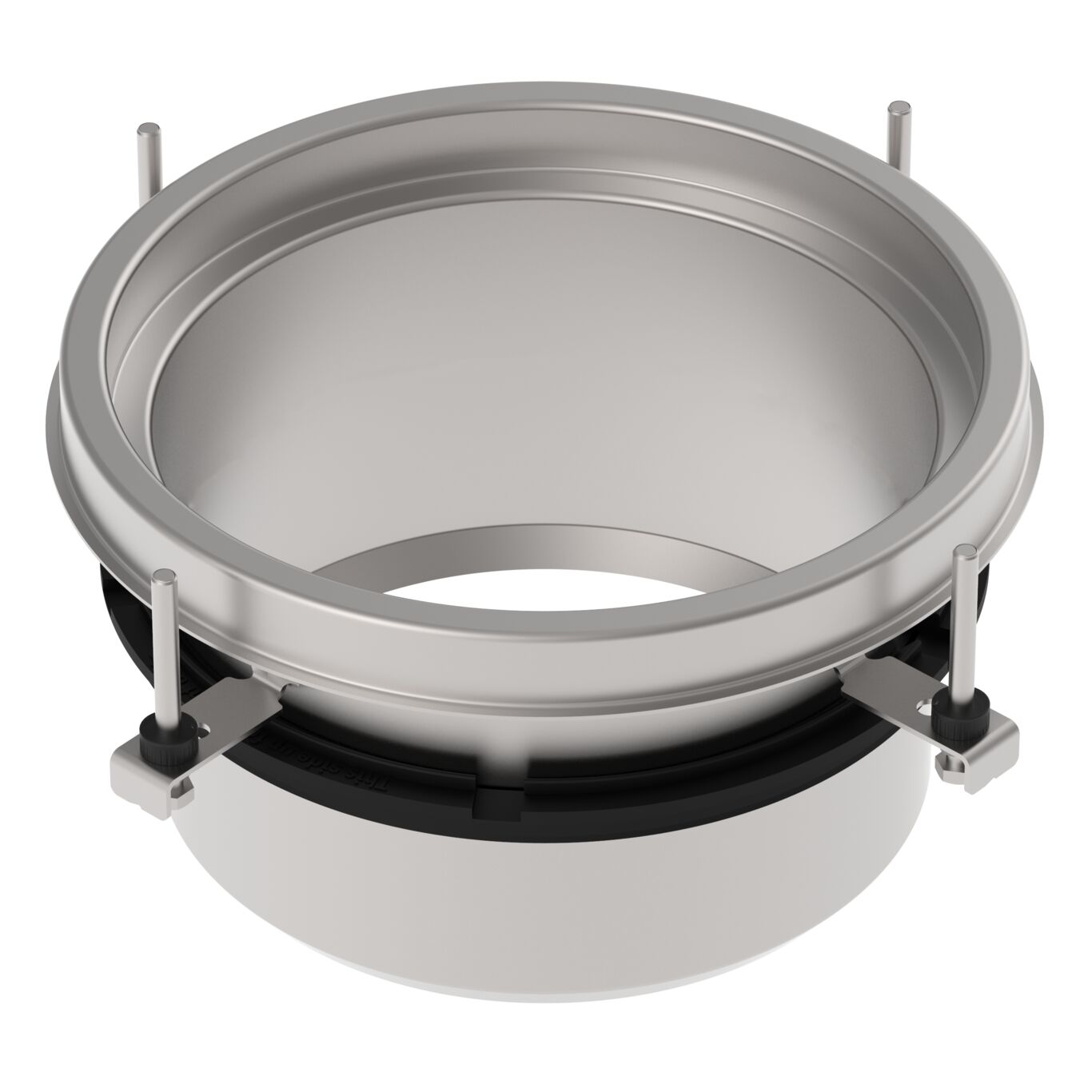

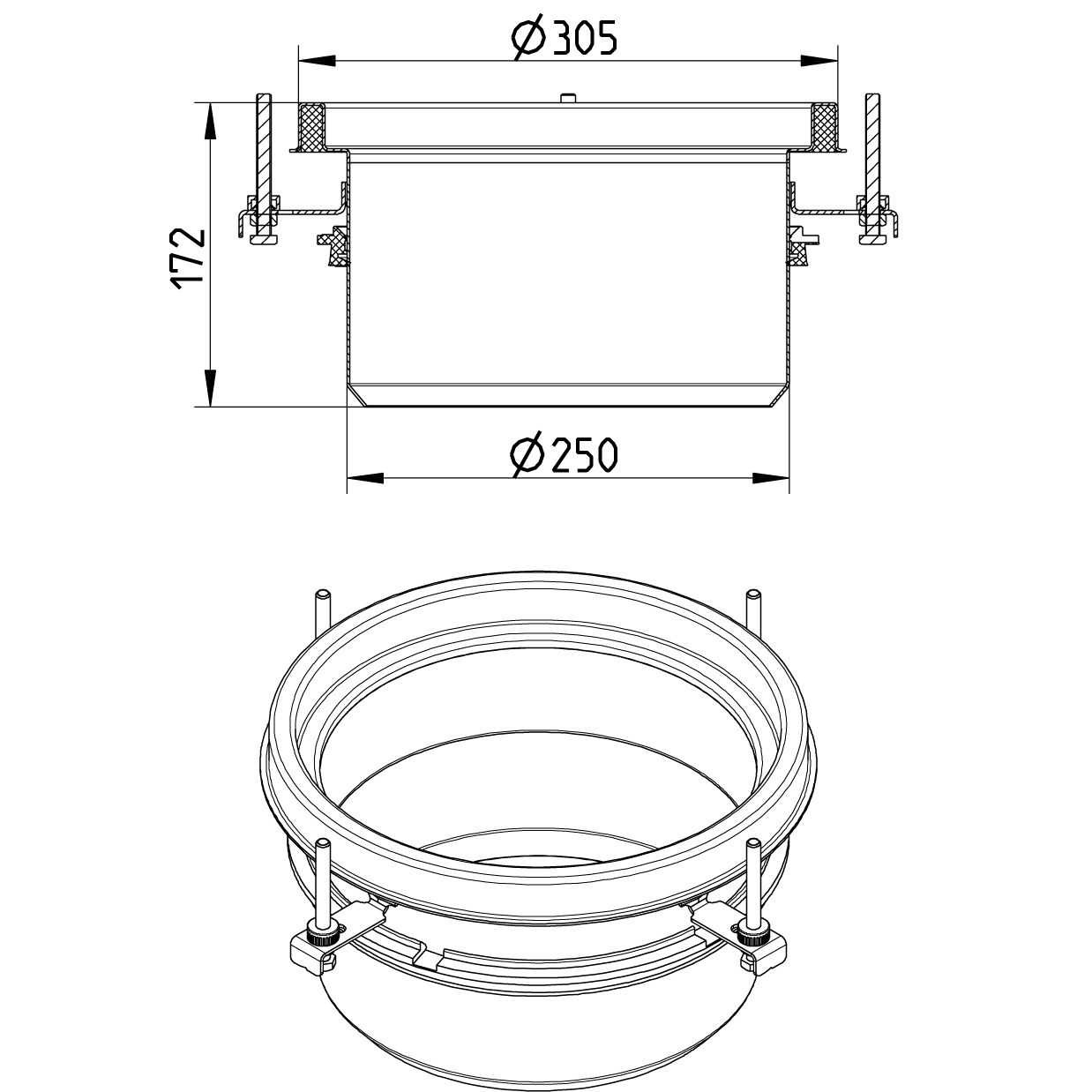

UPPER PART - (774.503.000)
×
![]()
Part Of the Series: Upper part-No membrane-305
Type no.: 774.503.000
EAN no.: 5705499112399
LVI no.: 3303840
Size: Ø305
UPPER PART
-Floor: resin
-Frame: Ø305mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field Of Application | Industrial |
| Floor | Resin |
| GWP total Co2 eq. for A1-A3 per product | 24,55kg |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 172 |
| Holes for screws in drains | 0 |
| Outlet Diameter ('') | 10 |
| Outlet Diameter (mm) | 250 |
| Shape of frame | Round |
| Size of Frame (inch) | Ø12 |
| Size of frame (mm) | Ø305 |
| Weight (kg) | 4,14 |
| Weight (lbs) | 9,13 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
