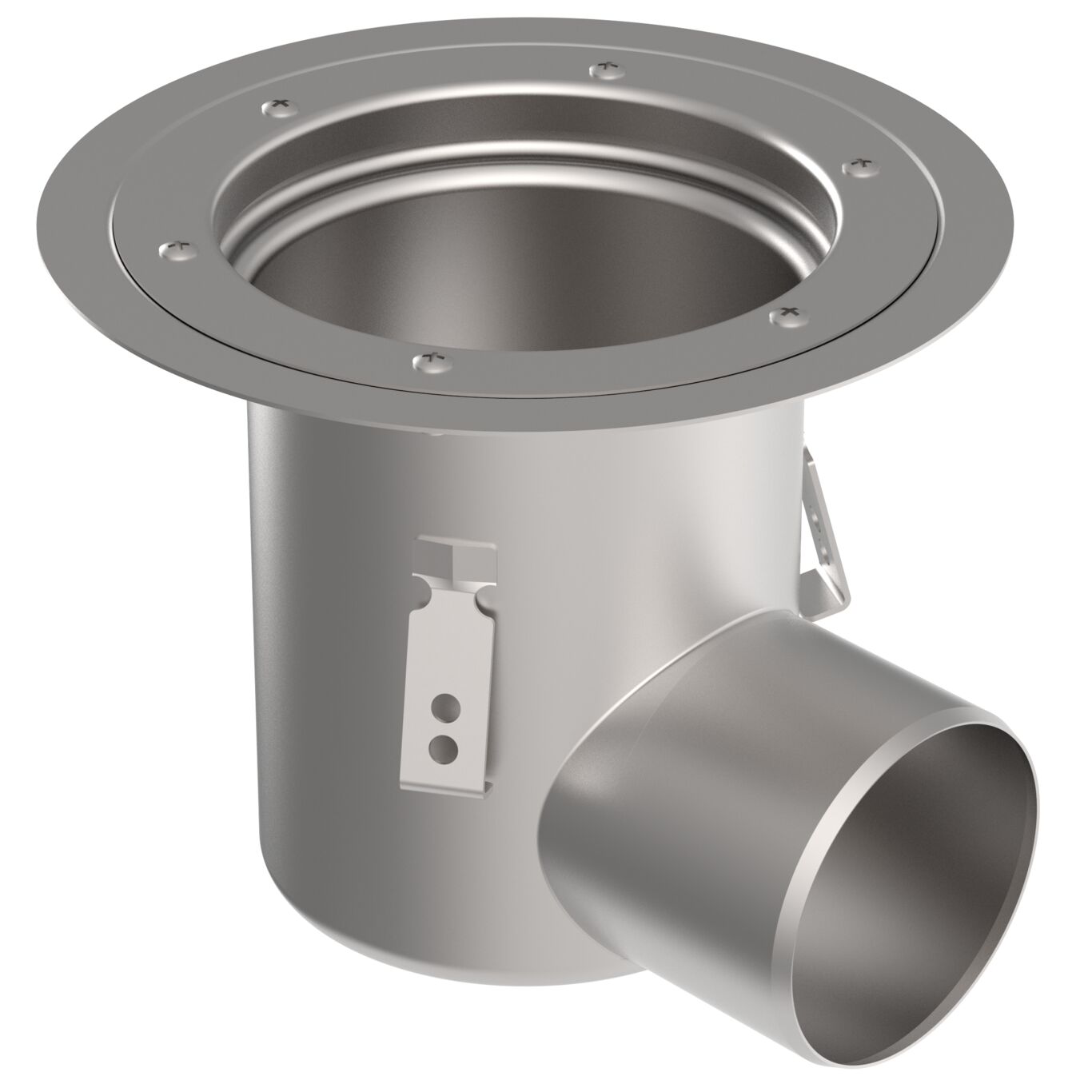

INDUSTRIAL DRAIN - (763.602.110)
×
![]()
Part Of the Series: Drain-Vinyl-232
Type no.: 763.602.110
EAN no.: 5705499110166
VVS no.: 153050602
RSK no.: 7121831
NRF no.: 3396363
LVI no.: 3303633
Size: Ø232
INDUSTRIAL DRAIN
-Floor: vinyl
-Frame: Ø232mm
-Outlet: Ø110mm, horizontal
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Adjustable | No |
| Field Of Application | Industrial |
| Floor | Vinyl |
| GWP total Co2 eq. for A1-A3 per product | 13,7kg |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 214 |
| Number of Inlets | 0 |
| Number of inlets (inch) | 0 |
| Holes for screws in drains | 0 |
| Outlet Diameter ('') | 4 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Horizontal |
| Shape of frame | Round |
| Size of Frame (inch) | Ø9⅛ |
| Size of frame (mm) | Ø232 |
| Weight (kg) | 2,31 |
| Weight (lbs) | 5,09 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DK - VA 2.42/19497
HACCP Food Safety Programme - Europe
BLÜCHER® Drains EPD
US - NSF/ANSI/3-A 14159-1-Meat and Poultry Declaration of Conformity - EN1253-001 DE - TÜV Rheinland - R 60178467 0001 PL - Hygienic Certificate - All Products Declaration of Conformity - BSEN1253-002
