TILED/EPOXY GRATING CIRCLE - (790.173.000.06)
×
![]()
Part Of the Series: Grating-Drain-205-Vinyl-232
Type no.: 790.173.000.06
EAN no.: 5705499128550
RSK no.: 7123456
Size: Ø195

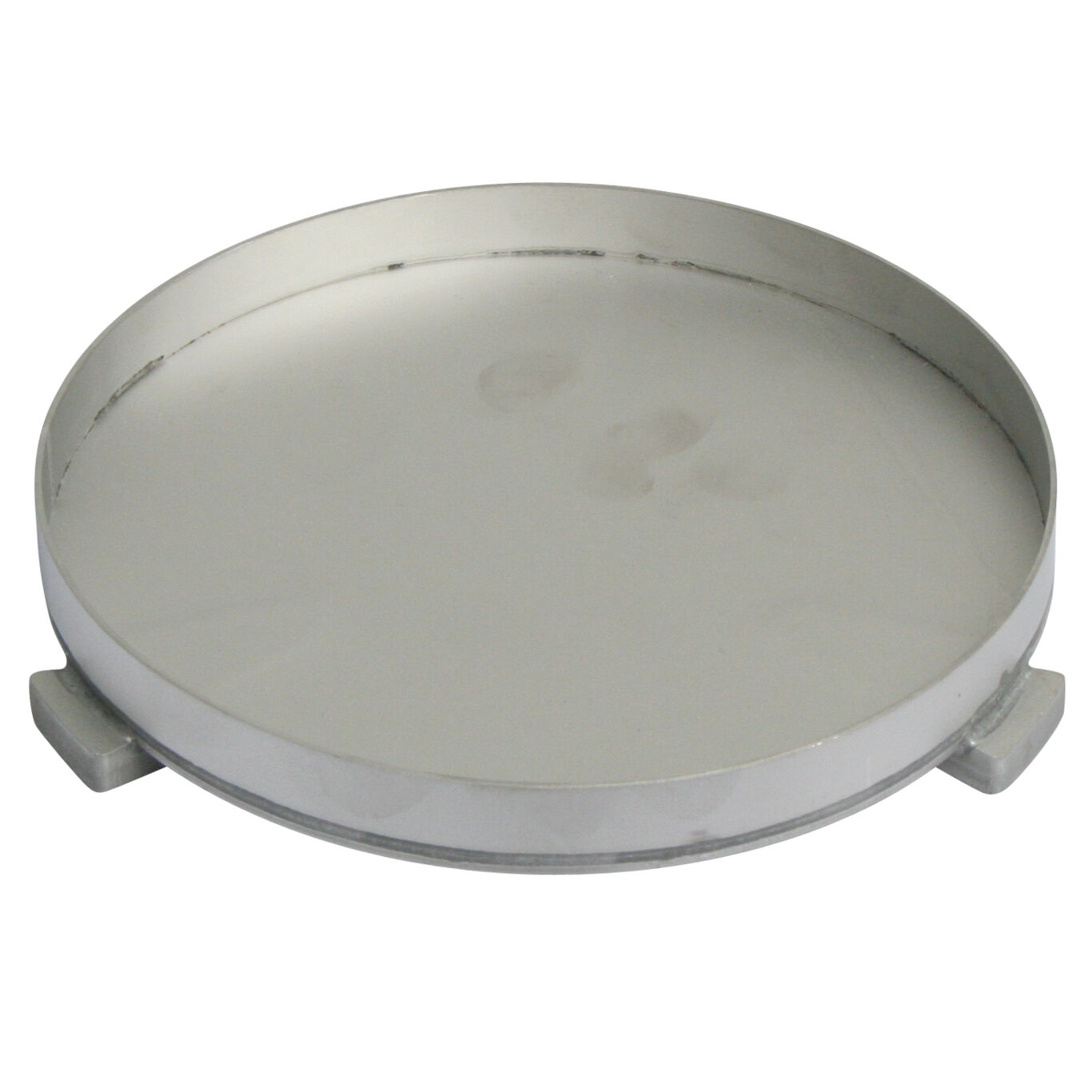

TILED/EPOXY GRATING CIRCLE
-Grating: Ø173mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field Of Application | Industrial |
| GWP total Co2 eq. for A1-A3 per product | 4,09kg |
| Load class EN1253 | L15 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Holes for screws in other products | 0 |
| Shape of frame | Round |
| Size of Frame (inch) | Ø7⅝ |
| Size of frame (mm) | Ø195 |
| Weight (kg) | 0,69 |
| Weight (lbs) | 1,52 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
