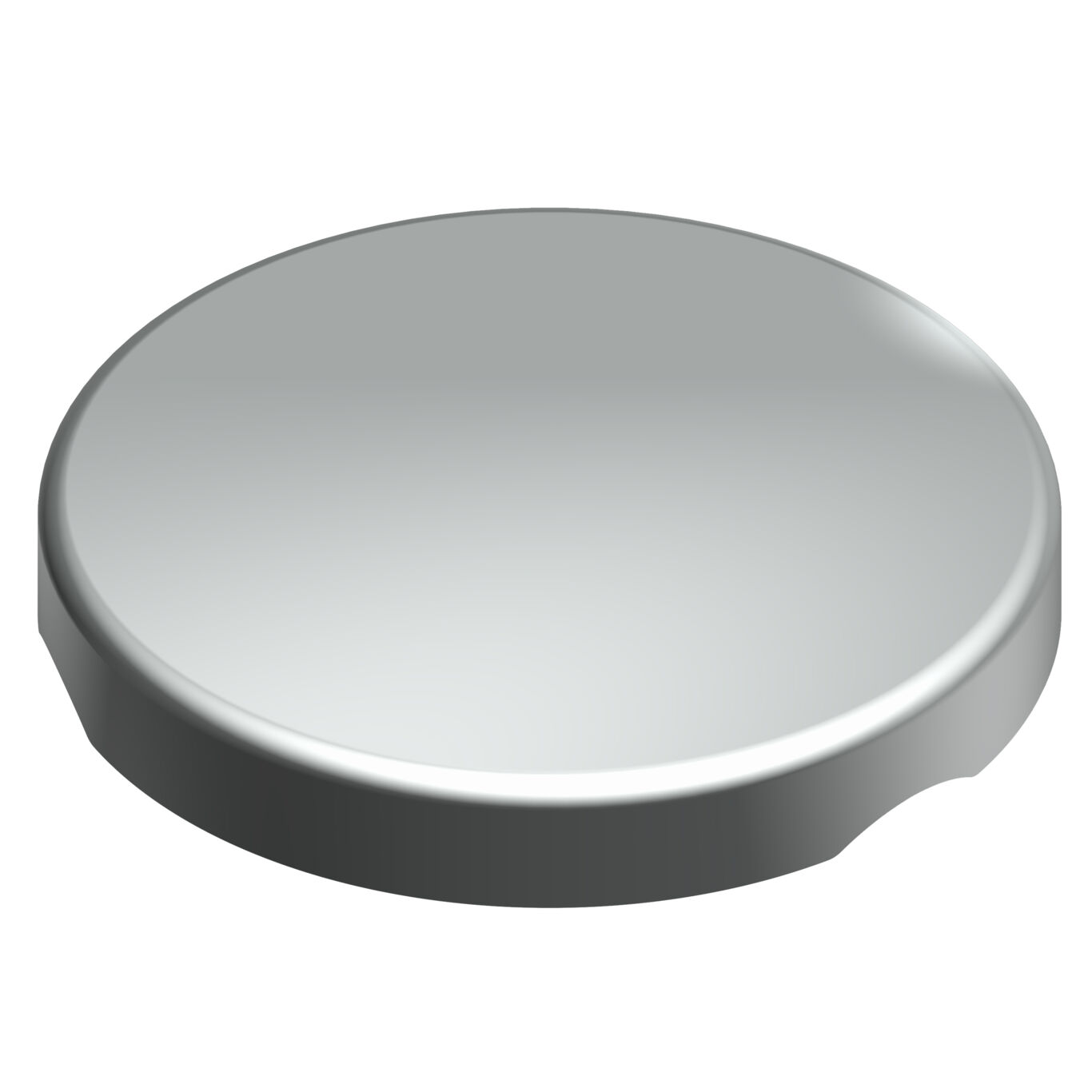

BLANK PLATE CIRCLE - (790.173.000.00)
×
![]()
Part Of the Series: Grating-Drain-205-Vinyl-232
Type no.: 790.173.000.00
EAN no.: 5705499121216
Size: Ø195
BLANK PLATE CIRCLE

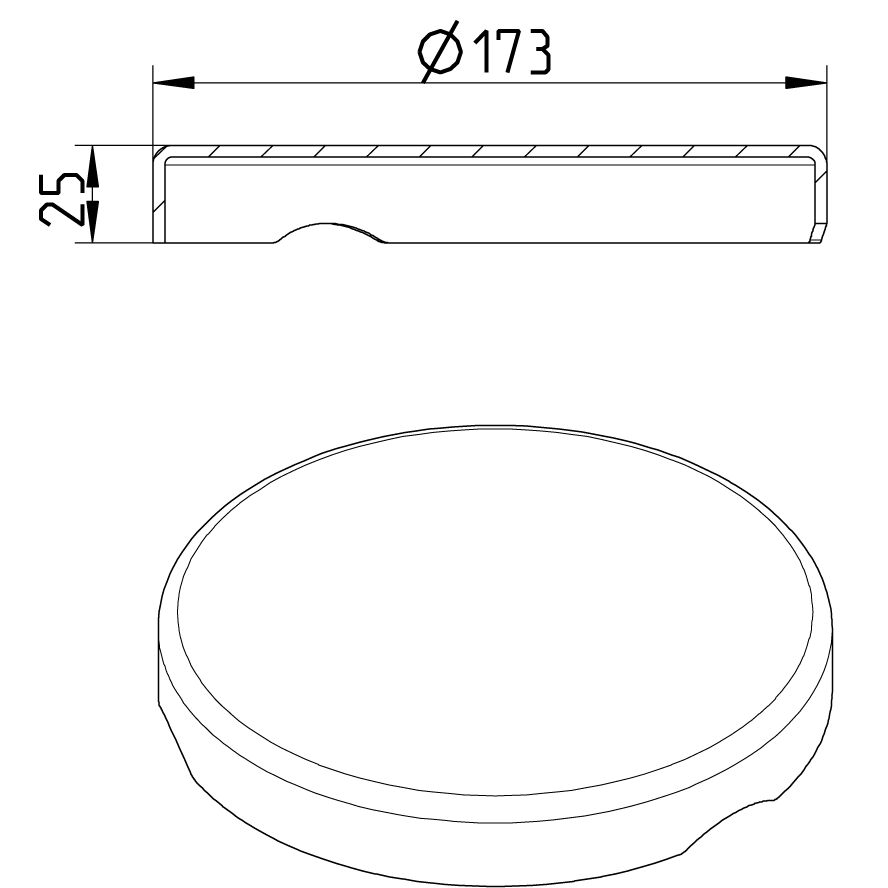

-Grating: Ø173mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field Of Application | Industrial |
| GWP total Co2 eq. for A1-A3 per product | 14,23kg |
| Load class EN1253 | L15 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Holes for screws in other products | 0 |
| Shape of frame | Round |
| Size of Frame (inch) | Ø7⅝ |
| Size of frame (mm) | Ø195 |
| Weight (kg) | 2,40 |
| Weight (lbs) | 5,29 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
