INDUSTRIAL DRAIN, LOW - (766.503.110)
×
![]()
Part Of the Series: Drain-No membrane-305
Type no.: 766.503.110
EAN no.: 5705499110500
VVS no.: 153050103
NRF no.: 3396058
LVI no.: 3303587
Size: Ø305

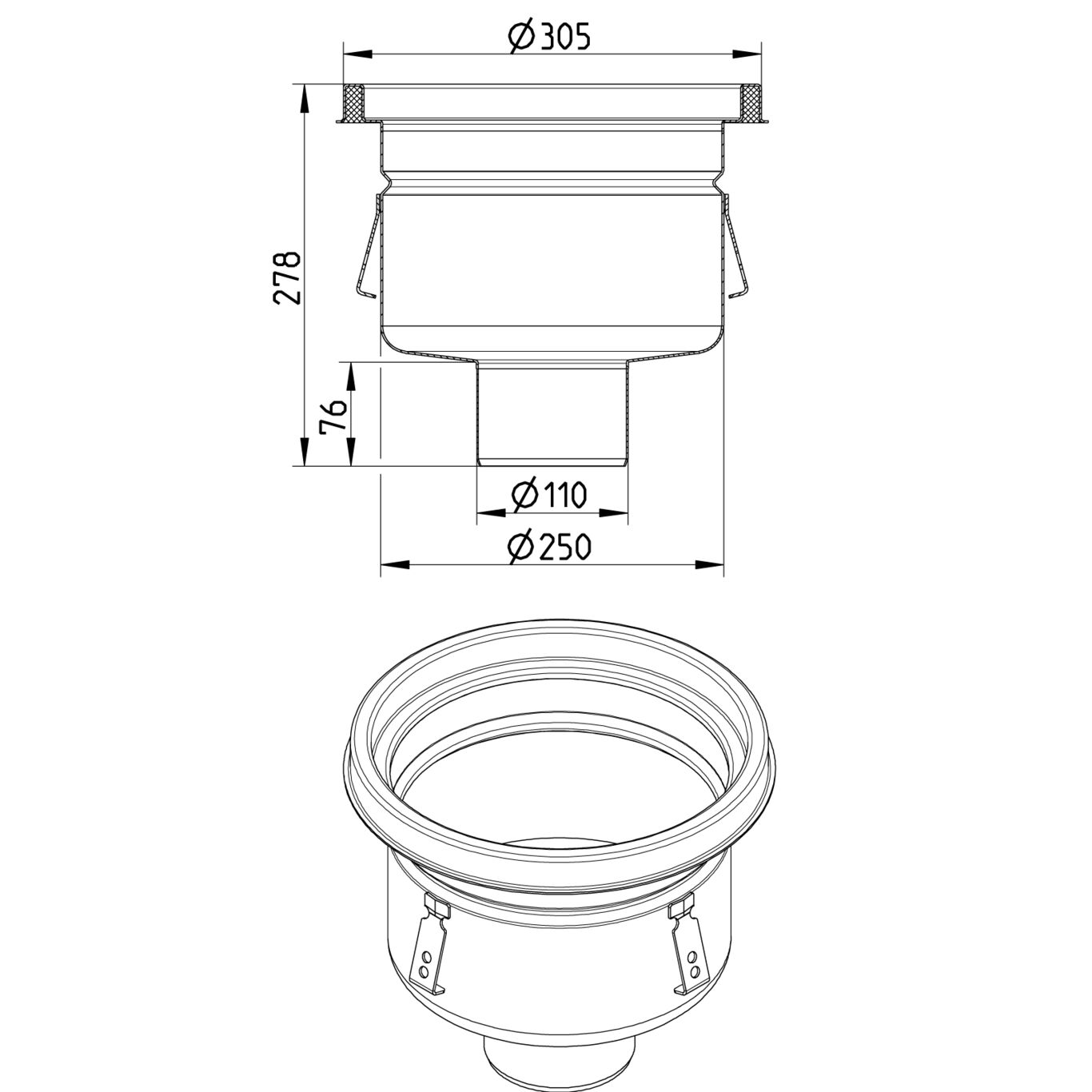

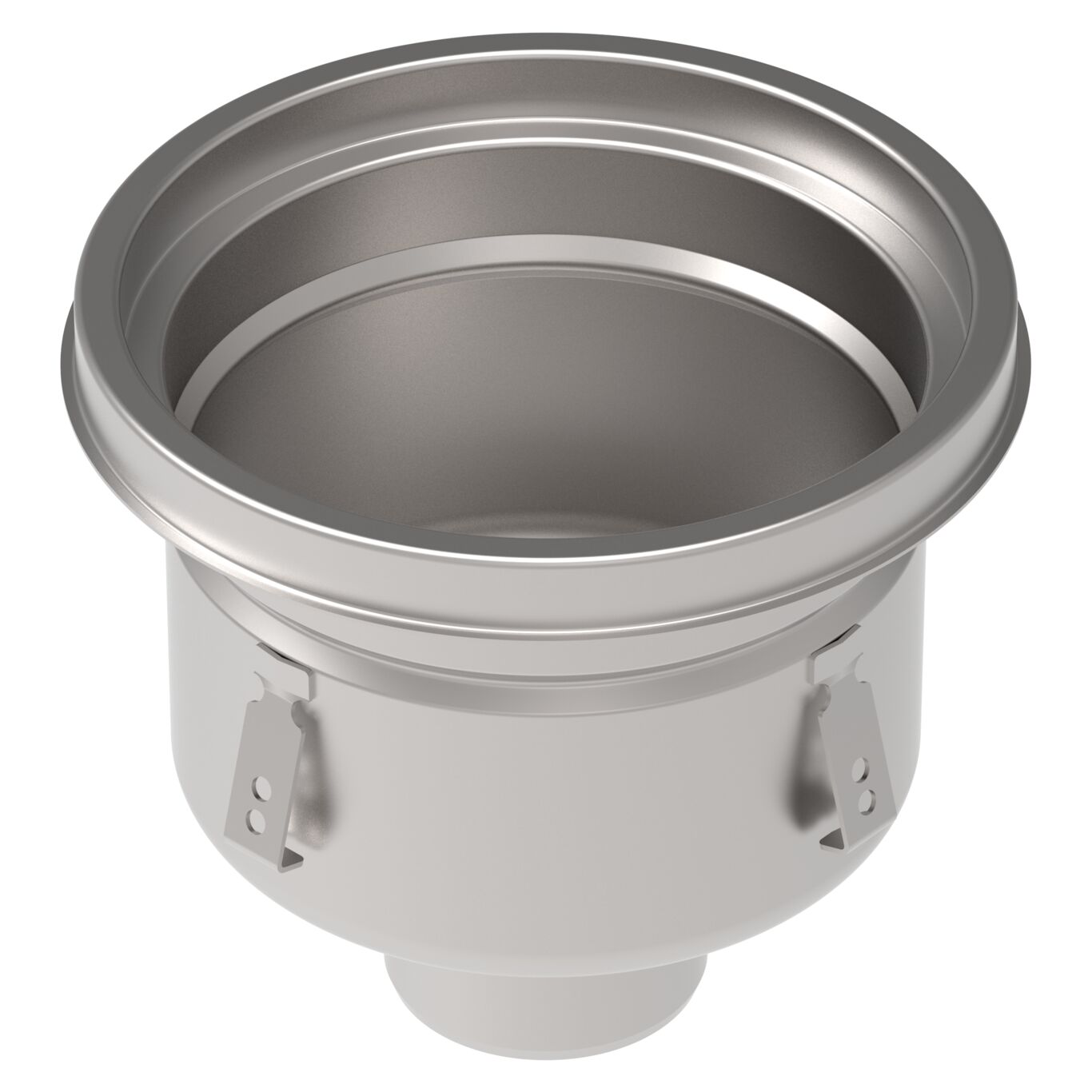

INDUSTRIAL DRAIN, LOW
-Floor: resin
-Frame: Ø305mm
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Adjustable | No |
| Field Of Application | Industrial |
| Floor | Resin |
| GWP total Co2 eq. for A1-A3 per product | 30,01kg |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 278 |
| Number of Inlets | 0 |
| Number of inlets (inch) | 0 |
| Holes for screws in drains | 0 |
| Outlet Diameter ('') | 4 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Shape of frame | Round |
| Size of Frame (inch) | Ø12 |
| Size of frame (mm) | Ø305 |
| Weight (kg) | 5,06 |
| Weight (lbs) | 11,16 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DK - VA 2.42/19497
BLÜCHER® Drains EPD
US - NSF
HACCP Food Safety Programme - Australasia
