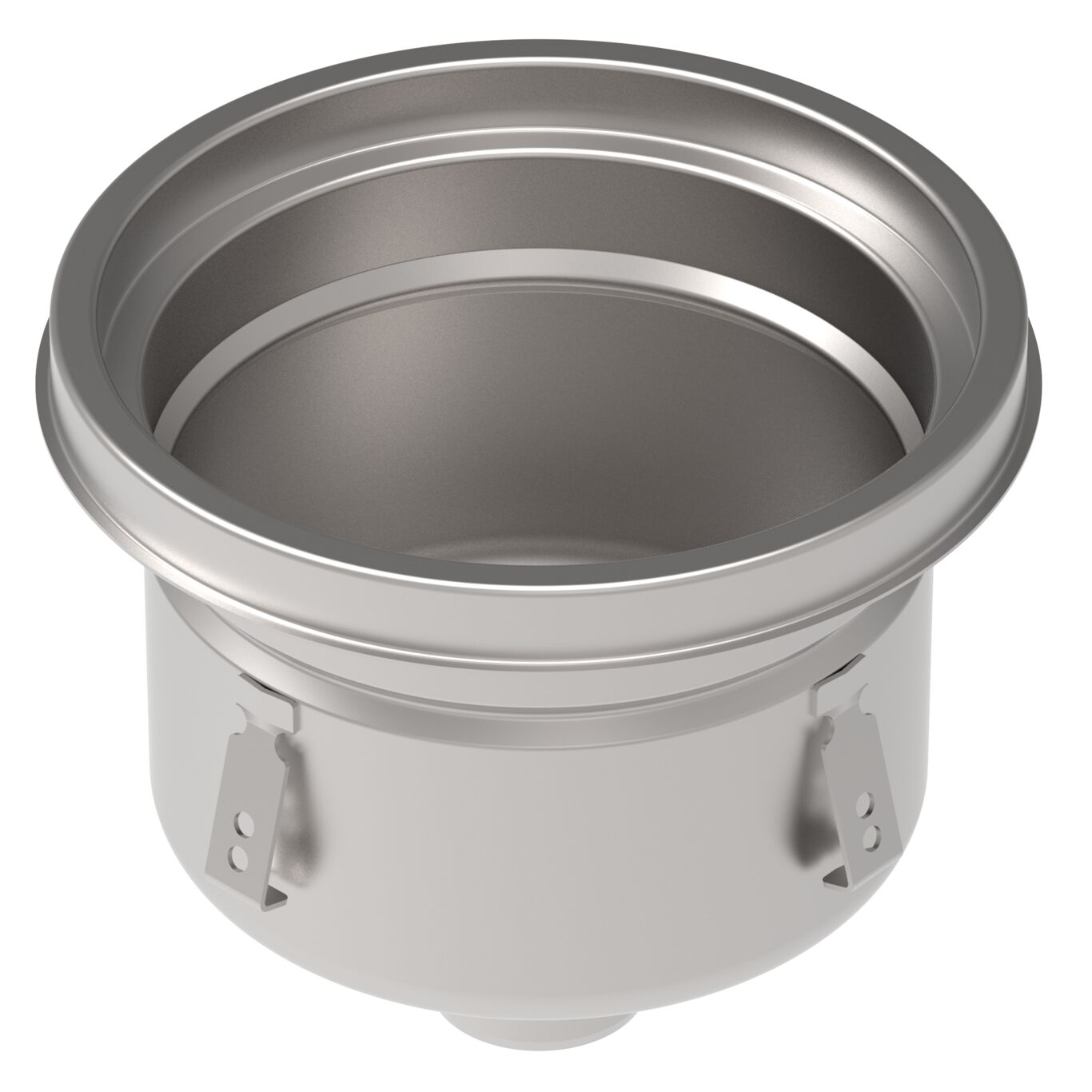

INDUSTRIAL DRAIN, LOW - (766.503.075)
×
![]()
Part Of the Series: Drain-No membrane-305
Type no.: 766.503.075
EAN no.: 5705499110487
LVI no.: 3303585

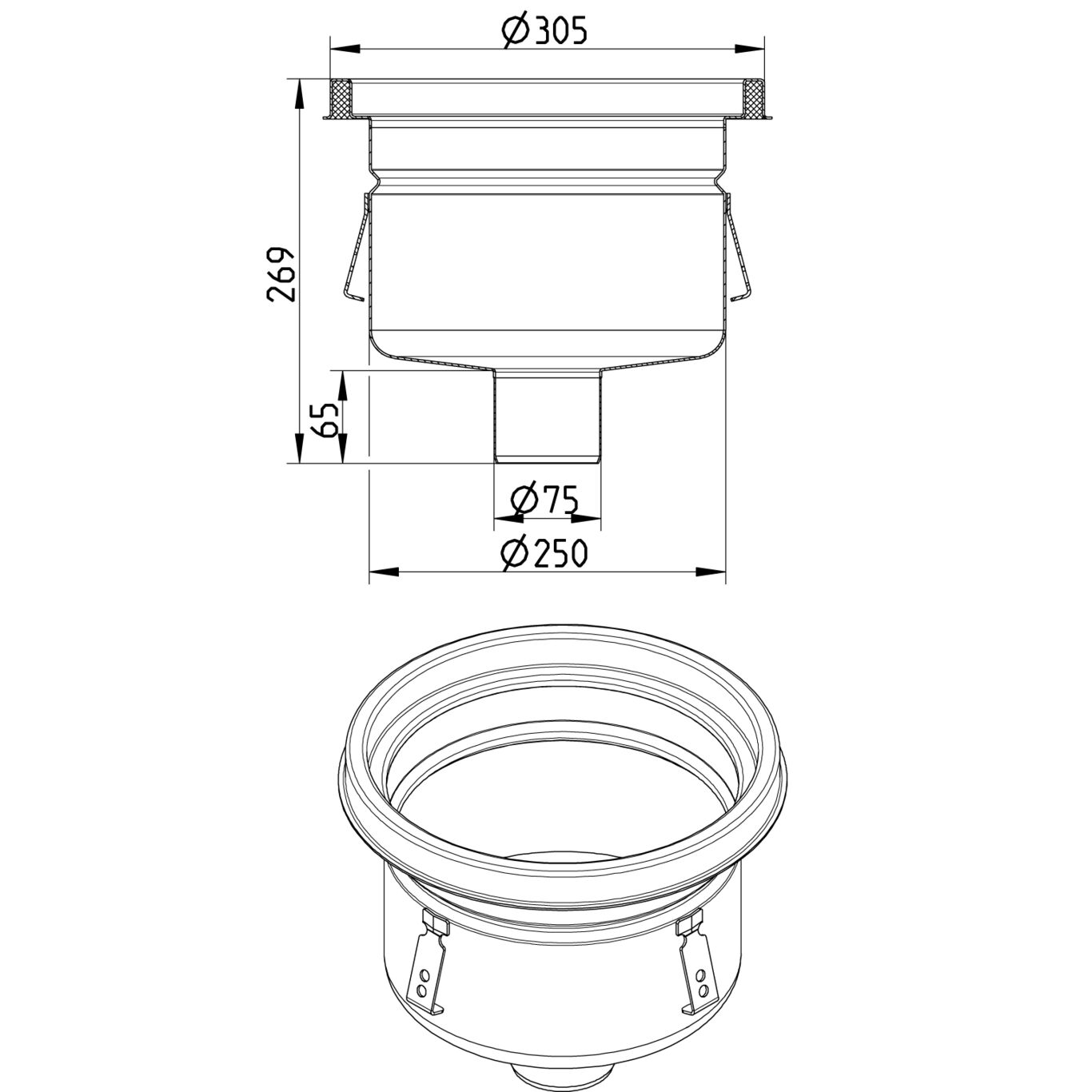

Size: Ø305
INDUSTRIAL DRAIN, LOW
-Floor: resin
-Frame: Ø305mm
-Outlet: Ø75mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Adjustable | No |
| Field Of Application | Industrial |
| Floor | Resin |
| GWP total Co2 eq. for A1-A3 per product | 29,89kg |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 269 |
| Number of Inlets | 0 |
| Number of inlets (inch) | 0 |
| Holes for screws in drains | 0 |
| Outlet Diameter ('') | 3 |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Vertical |
| Shape of frame | Round |
| Size of Frame (inch) | Ø12 |
| Size of frame (mm) | Ø305 |
| Weight (kg) | 5,04 |
| Weight (lbs) | 11,11 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
