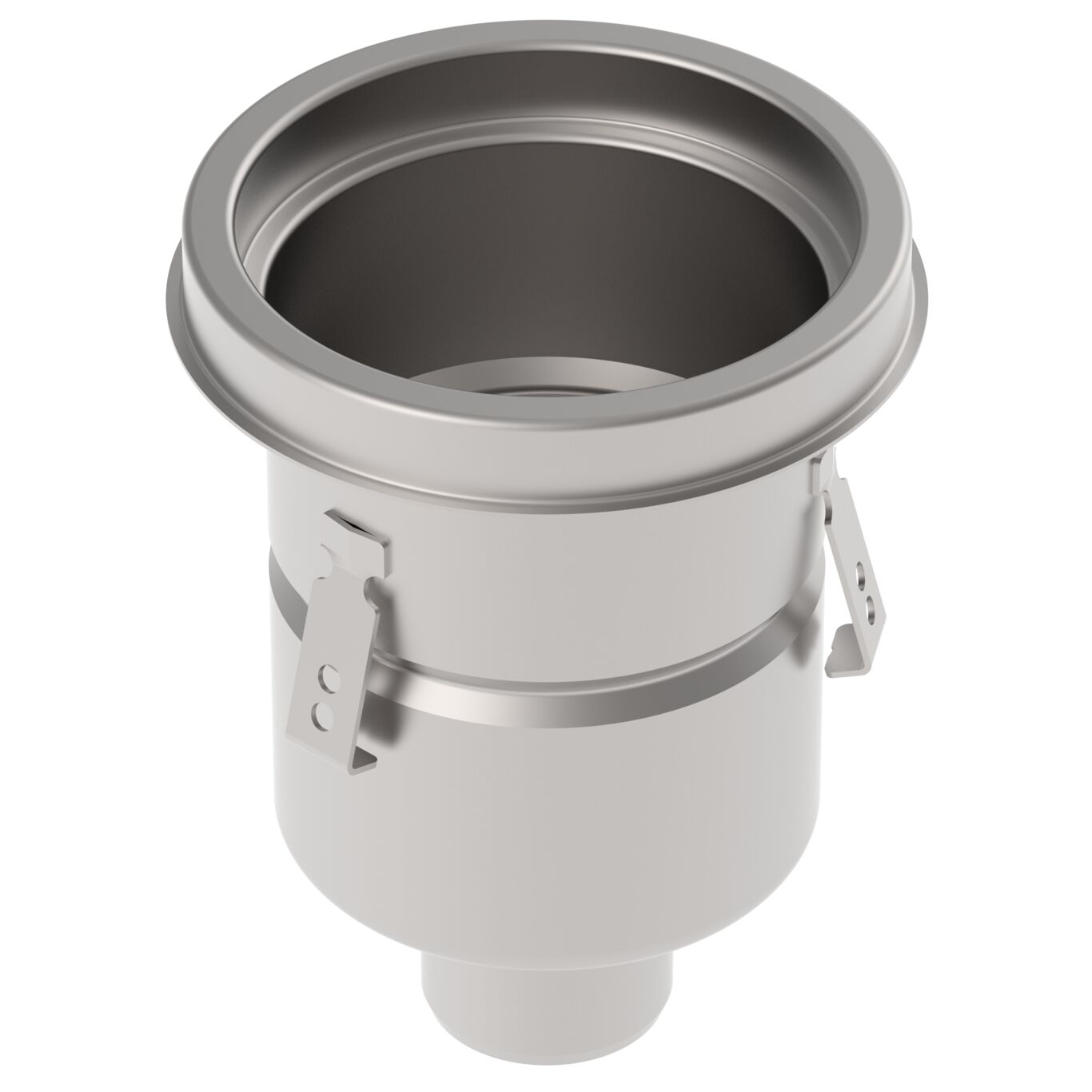

INDUSTRIAL DRAIN - (760.502.075 S)
×
![]()
Part Of the Series: Drain-No membrane-205
Type no.: 760.502.075 S
EAN no.: 5705499109511
VVS no.: 153001113
LVI no.: 3303522
Size: Ø205

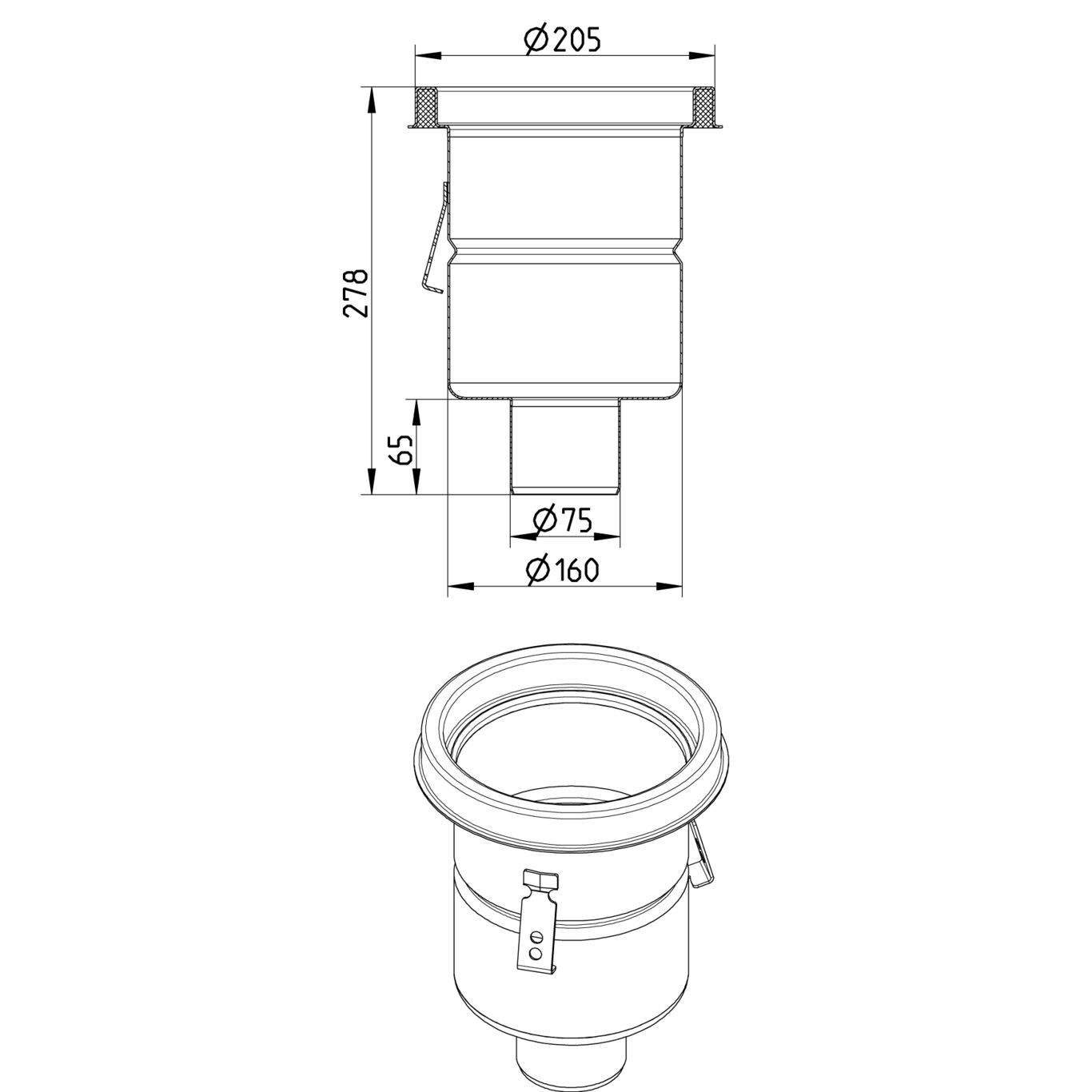

INDUSTRIAL DRAIN
-Floor: resin
-Frame: Ø205mm
-Outlet: Ø75mm, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Adjustable | No |
| Field Of Application | Industrial |
| Floor | Resin |
| GWP total Co2 eq. for A1-A3 per product | 14,41kg |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 278 |
| Number of Inlets | 0 |
| Number of inlets (inch) | 0 |
| Holes for screws in drains | 0 |
| Outlet Diameter ('') | 3 |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Vertical |
| Shape of frame | Round |
| Size of Frame (inch) | Ø8⅛ |
| Size of frame (mm) | Ø205 |
| Weight (kg) | 2,43 |
| Weight (lbs) | 5,36 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
