TILED/EPOXY GRATING SQUARE - (790.268.000.06)

Part Of the Series: Grating-Drain-300

Type no.: 790.268.000.06

EAN no.: 5705499128543

RSK no.: 7123455

NRF no.: 3397194

Size: 300x300

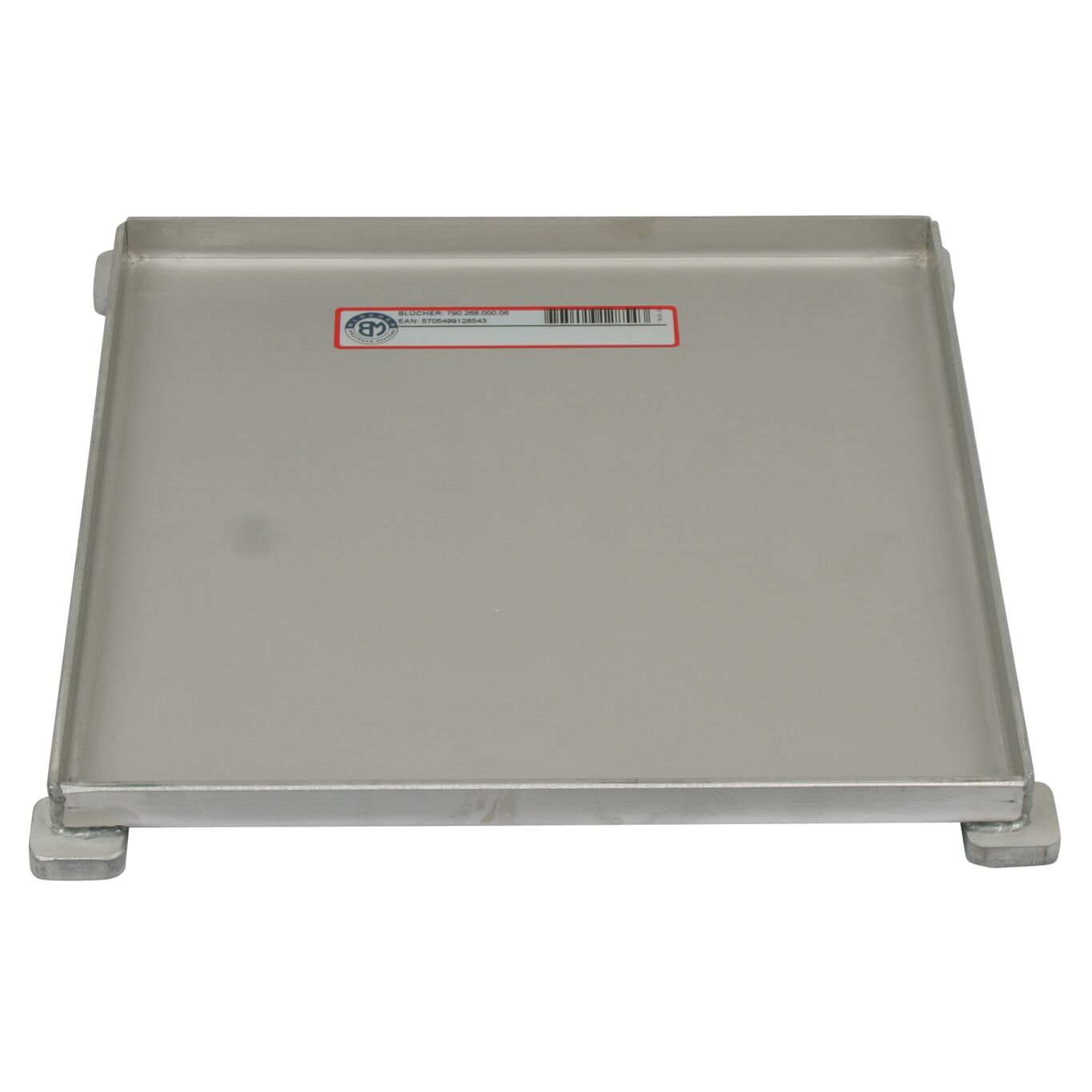

TILED/EPOXY GRATING SQUARE

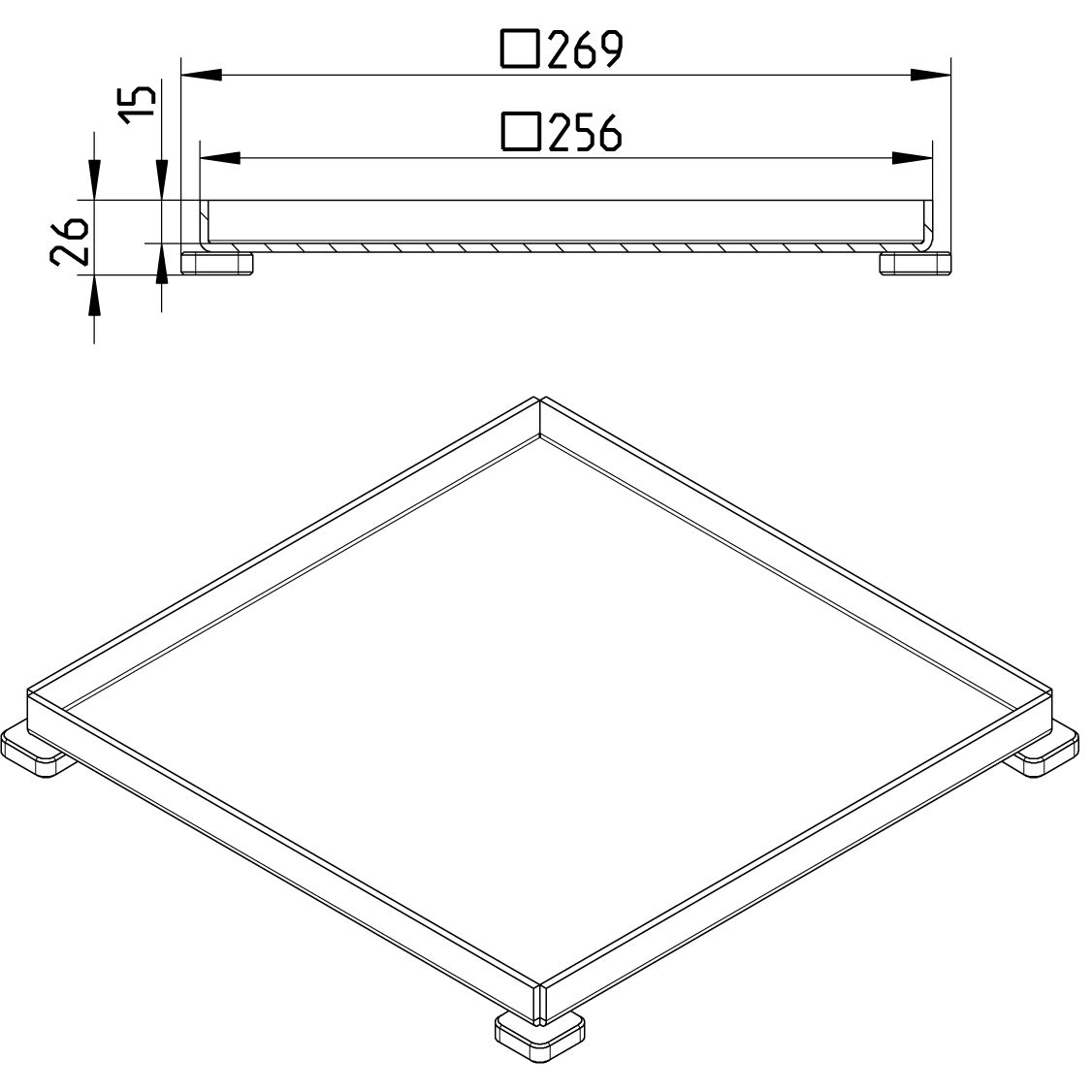

-Grating: 269x269mm
-Stainless steel: AISI304/EN1.4301

Product Specification
Field Of Application	Industrial
GWP total Co2 eq. for A1-A3 per product	12,04kg
Load class EN1253	L15
Material	AISI 304
Material (EN)	EN 1.4301
Minimum Height (mm)	26
Holes for screws in other products	0
Shape of frame	Square
Size of Frame (inch)	11¾x11¾
Size of frame (mm)	300x300
Weight (kg)	2,03
Weight (lbs)	4,48
