MESH GRATING SQUARE - (790.218.000.22)
×
![]()
Part Of the Series: Grating-Drain-250
Type no.: 790.218.000.22
EAN no.: 5705499128680
LVI no.: 3304990
Size: 250x250

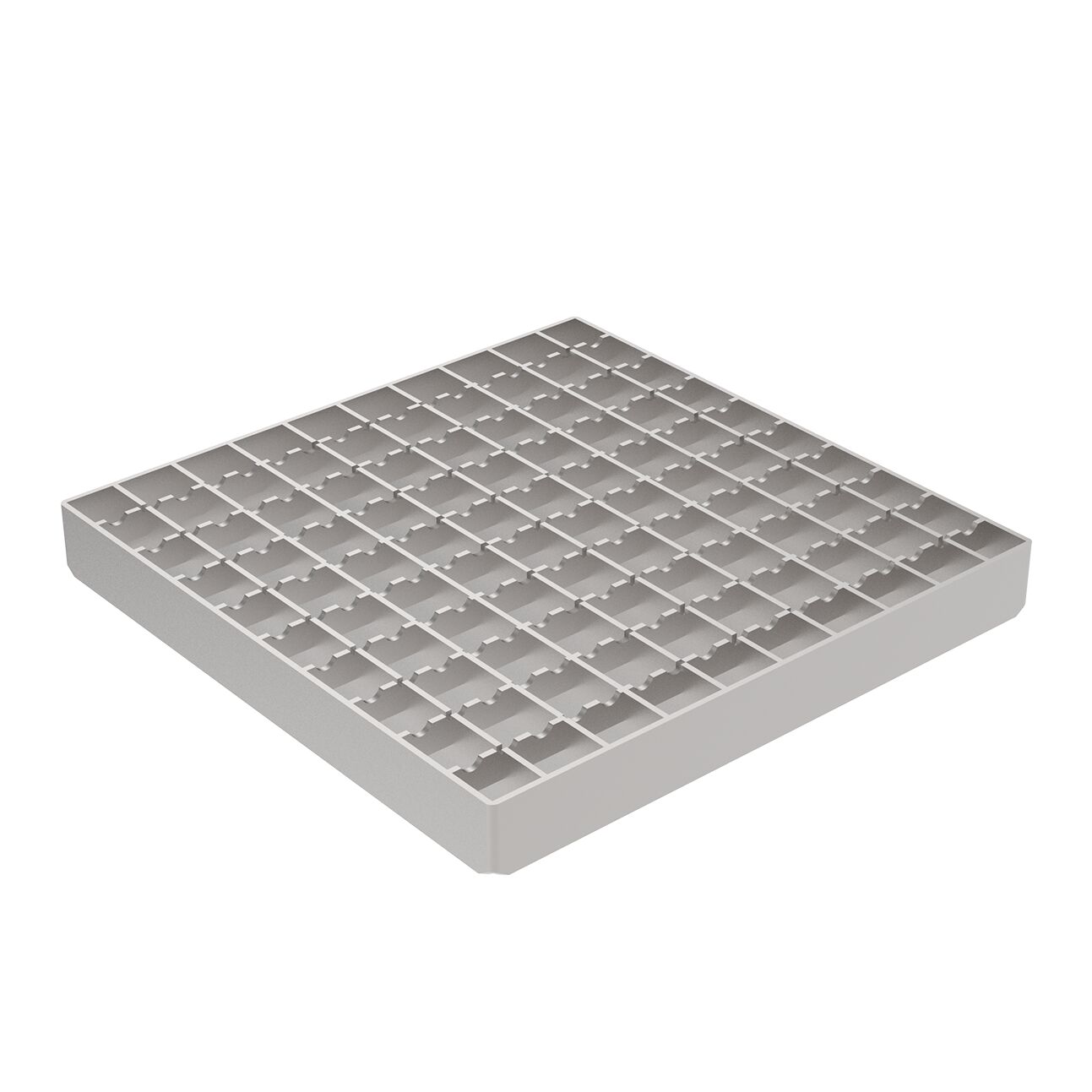

MESH GRATING SQUARE

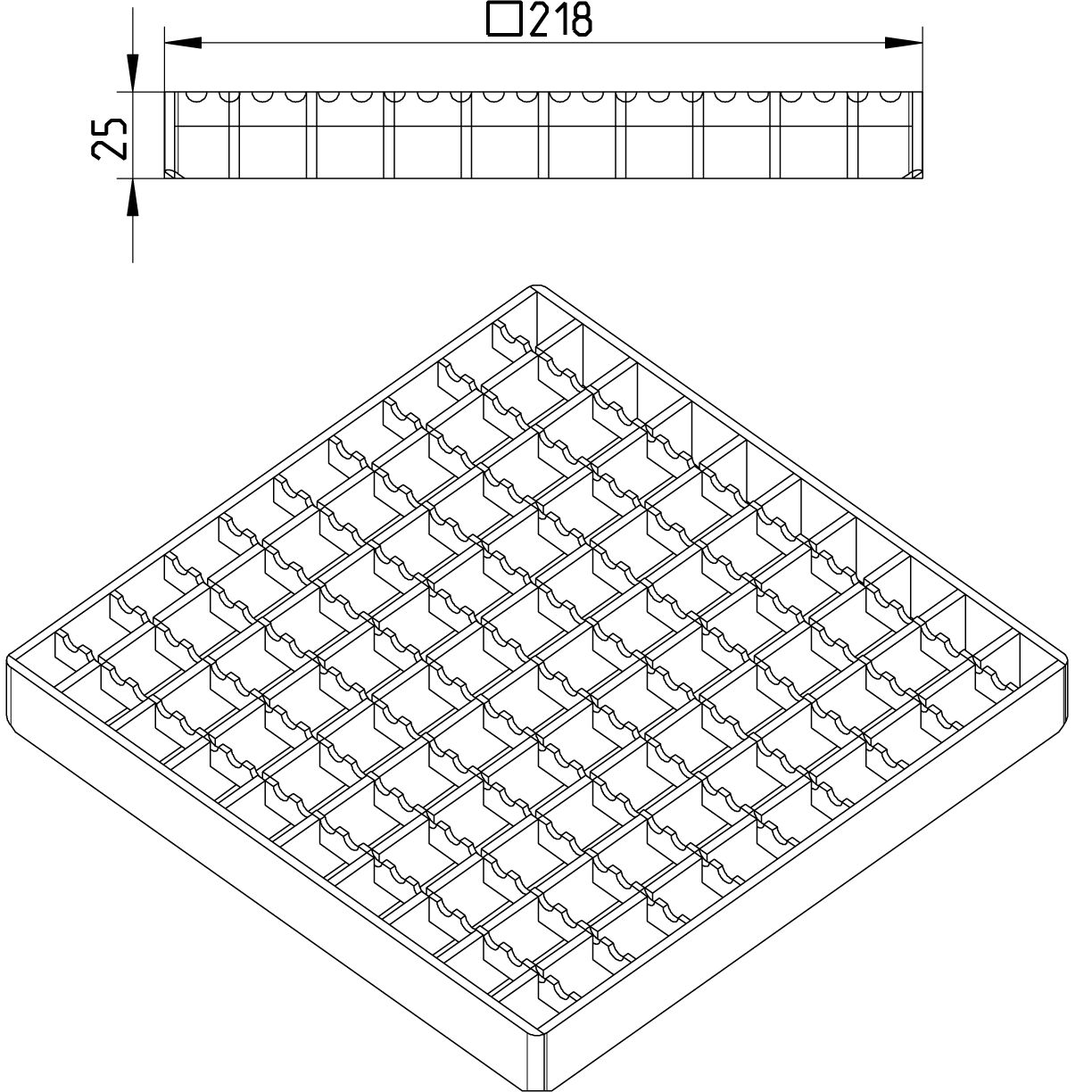

-Grating: 218x218mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field Of Application | Industrial |
| GWP total Co2 eq. for A1-A3 per product | 7,59kg |
| Load class EN1253 | L15 |
| Load Class EN1433 | A15 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Non Slip | R12 |
| Holes for screws in other products | 0 |
| Shape of frame | Square |
| Size of Frame (inch) | 9⅞x9⅞ |
| Size of frame (mm) | 250x250 |
| Weight (kg) | 1,28 |
| Weight (lbs) | 4,08 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
