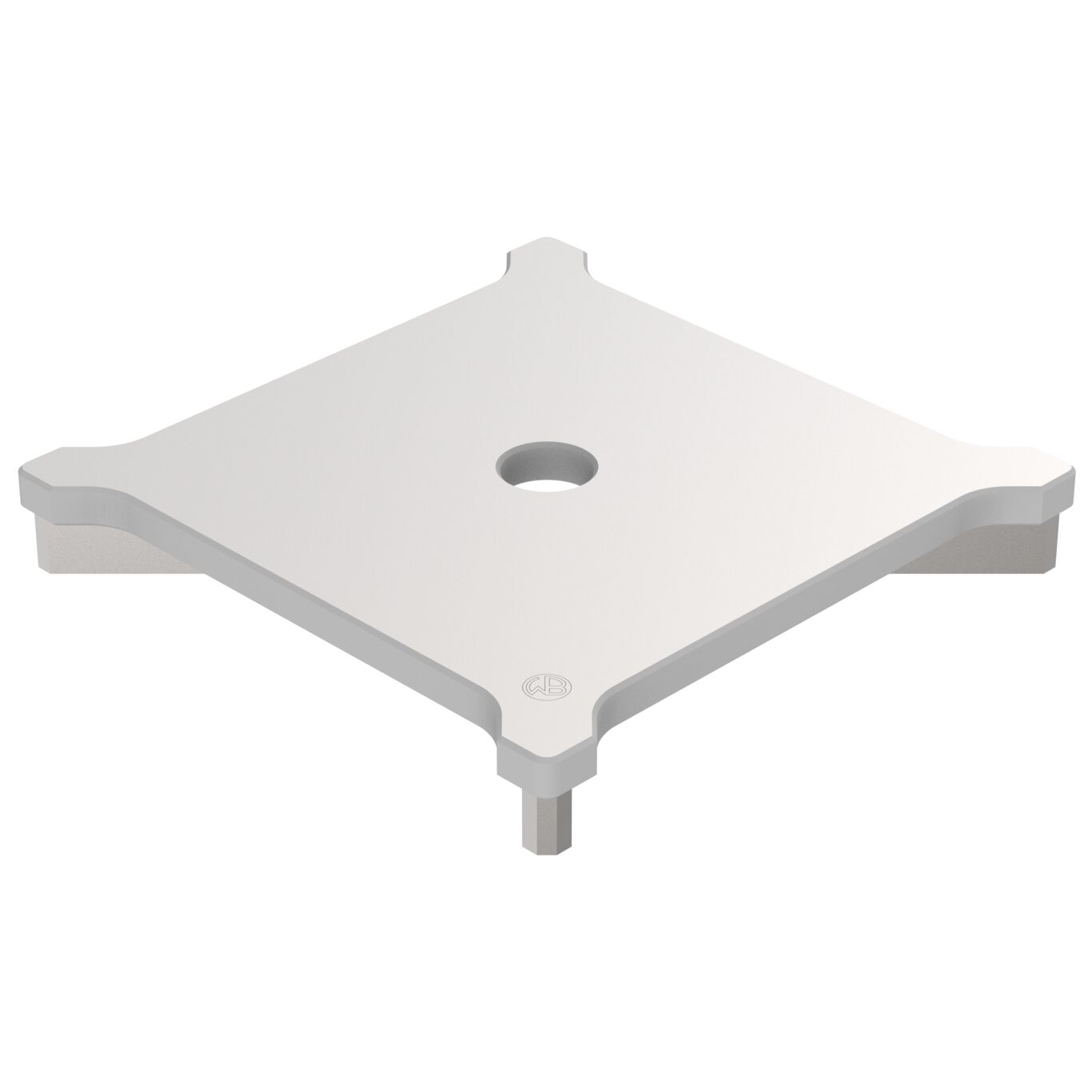

SLOT GRATING SQUARE - (790.168.000.10 S)
×
![]()
Part Of the Series: Grating-Drain-200
Type no.: 790.168.000.10 S
EAN no.: 5705499113457
VVS no.: 153539110
Size: 200x200
SLOT GRATING SQUARE
-Grating: 170x170mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field Of Application | Industrial |
| Load class EN1253 | R50 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 25 |
| Non Slip | R10 |
| Holes for screws in other products | 0 |
| Shape of frame | Square |
| Size of Frame (inch) | 7⅞x7⅞ |
| Size of frame (mm) | 200x200 |
| Weight (kg) | 2,06 |
| Weight (lbs) | 4,54 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
