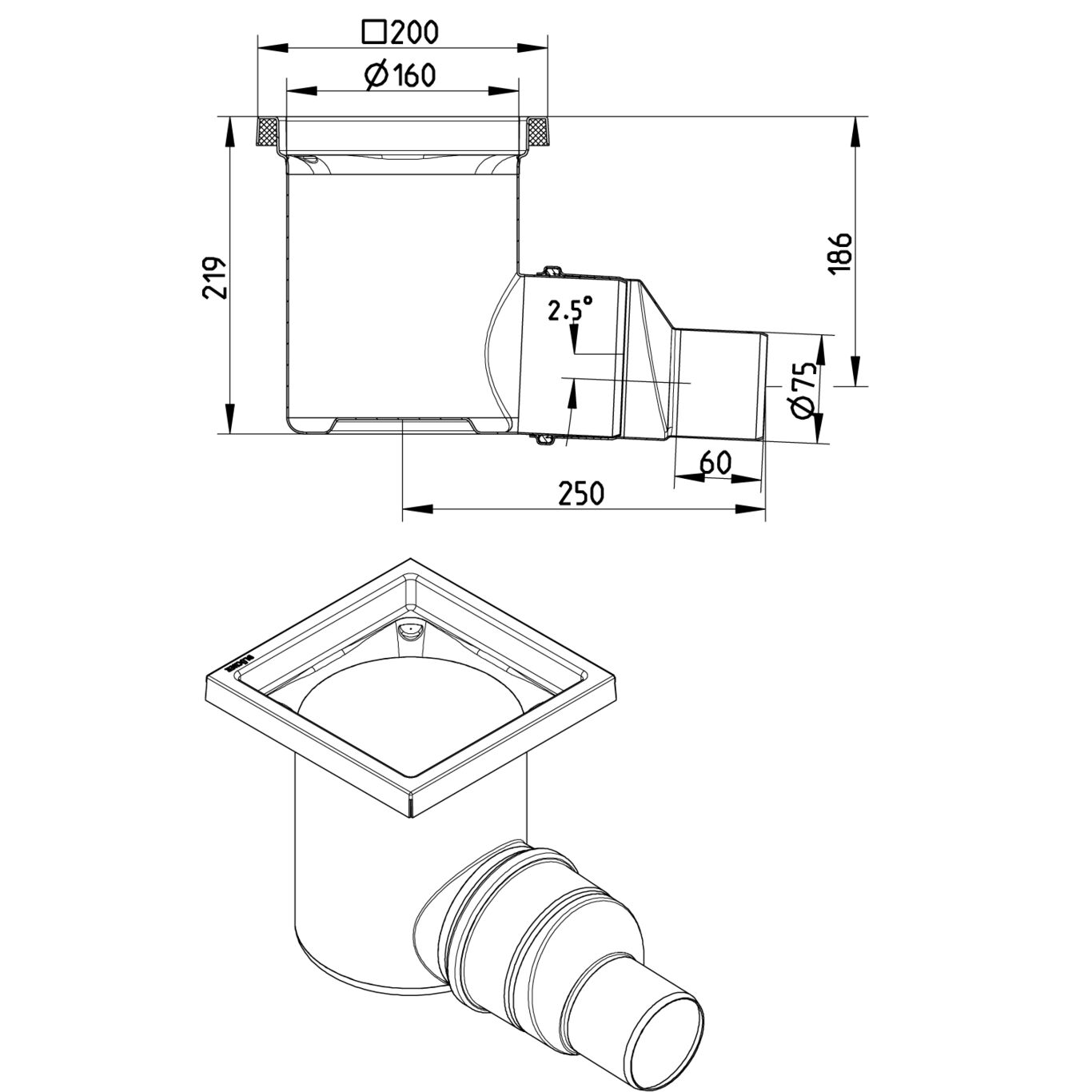

INDUSTRIAL DRAIN - (763.402.075)
×
![]()
Part Of the Series: Drain-No membrane-200
Type no.: 763.402.075
EAN no.: 5705499109900
RSK no.: 7121822
NRF no.: 3396091
LVI no.: 3303601
Size: 200x200
INDUSTRIAL DRAIN
-Floor: concrete and tiled
-No membrane, frame: 200x200mm
-Outlet: Ø75mm, horizontal
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Adjustable | No |
| Field Of Application | Industrial |
| Floor | Concrete / Tiled |
| GWP total Co2 eq. for A1-A3 per product | 16,07kg |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Number of Inlets | 0 |
| Number of inlets (inch) | 0 |
| Holes for screws in drains | 0 |
| Outlet Diameter ('') | 3 |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Horizontal |
| Shape of frame | Square |
| Size of Frame (inch) | 7⅞x7⅞ |
| Size of frame (mm) | 200x200 |
| Weight (kg) | 2,71 |
| Weight (lbs) | 5,97 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
