INDUSTRIAL DRAIN, LOW - (767.402.110)
×
![]()
Part Of the Series: Drain-Liquid membrane-200
Type no.: 767.402.110
EAN no.: 5705499110685
VVS no.: 153045116
NRF no.: 3396379
Size: 200x200

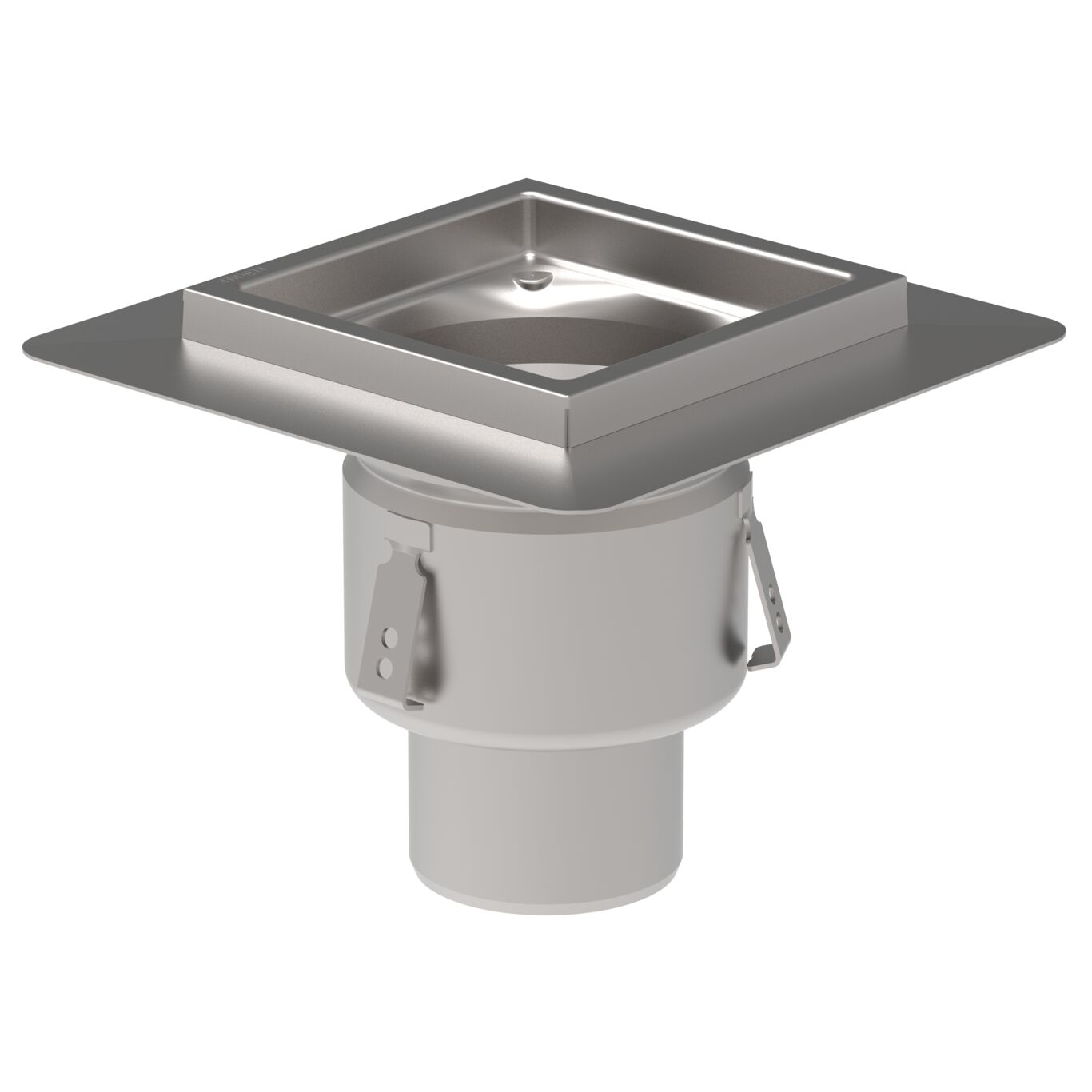

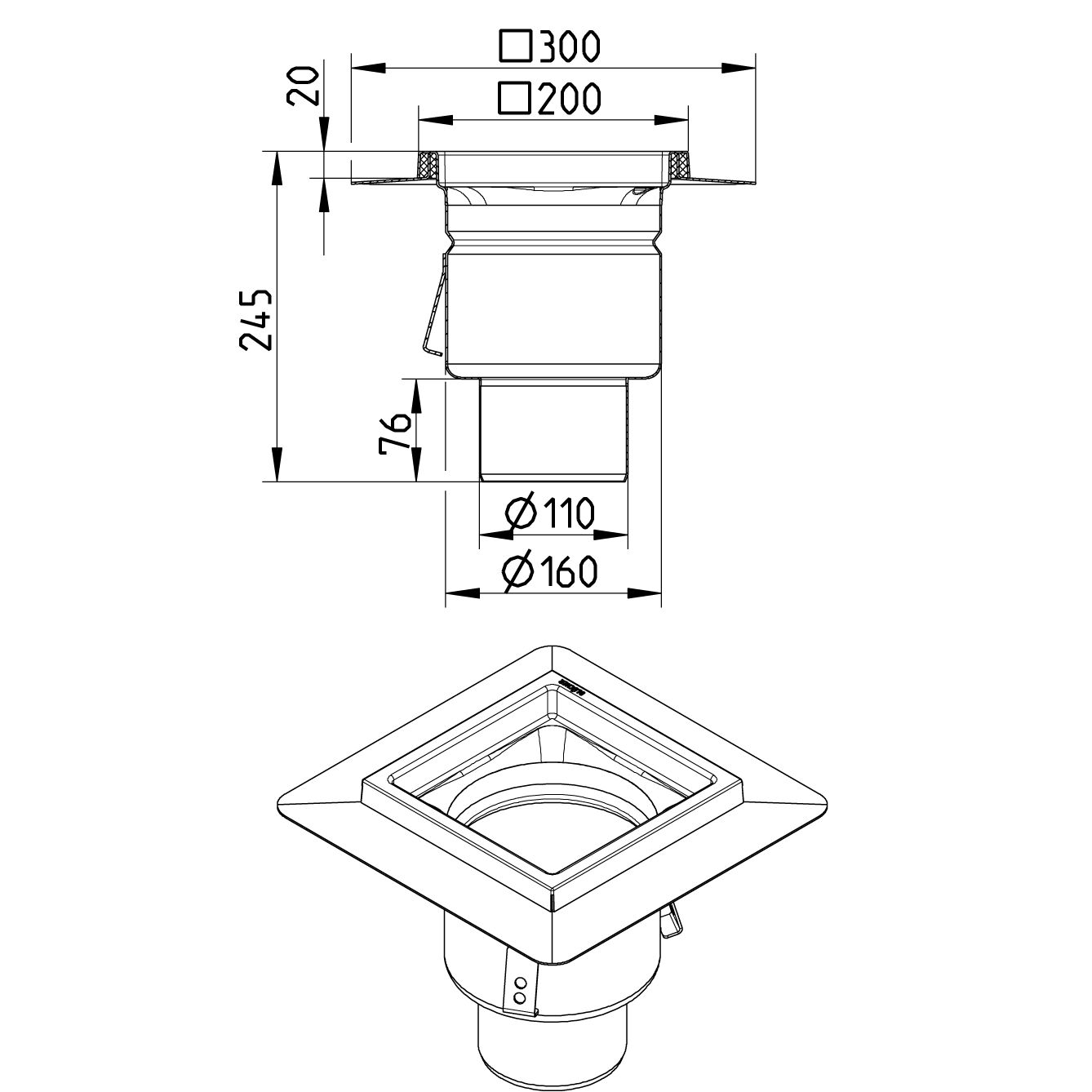

INDUSTRIAL DRAIN, LOW
-Floor: concrete and tiled
-Liquid membrane, frame: 200x200mm
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Adjustable | No |
| Field Of Application | Industrial |
| Floor | Concrete / Tiled |
| GWP total Co2 eq. for A1-A3 per product | 30,18kg |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | Liquid Membrane |
| Number of Inlets | 0 |
| Number of inlets (inch) | 0 |
| Holes for screws in drains | 0 |
| Outlet Diameter ('') | 4 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Shape of frame | Square |
| Size of Frame (inch) | 7⅞x7⅞ |
| Size of frame (mm) | 200x200 |
| Weight (kg) | 5,09 |
| Weight (lbs) | 11,22 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Europe
BLÜCHER® Drains EPD
DK - VA 2.42/19497
US - NSF/ANSI/3-A 14159-1-Meat and Poultry PL - Hygienic Certificate - All Products Declaration of Conformity - BSEN1253-002 Declaration of Conformity - EN1253-001 DE - TÜV Rheinland - R 60178467 0001
